Overview

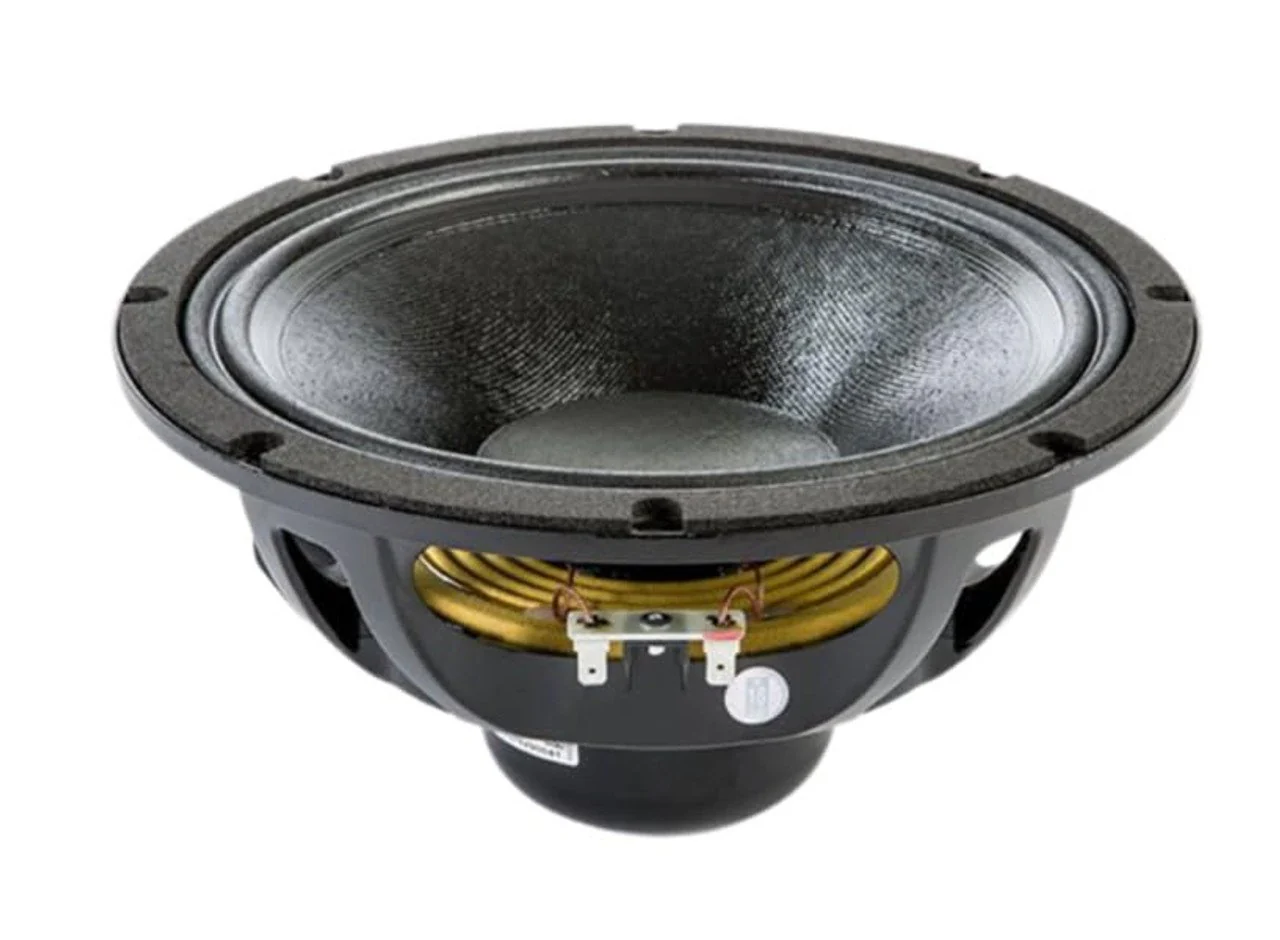

The Eighteen Sound 10NW650-8 is a robust 10-inch low frequency neodymium woofer designed to deliver high-quality audio performance in diverse settings. Its outstanding features include a weather-protected cone and coated plates, making it suitable for outdoor use. This transducer is highly efficient, offering a sensitivity of 96 dB SPL at 1W/1m, and it incorporates a high excursion design that ensures low frequency clarity and punch. Ideal for both line array applications and multiway systems, this lightweight unit provides powerful sound reinforcement.

Features

• High sensitivity of 96 dB SPL 1W / 1m for clear sound output.
• Features a 65 mm (2.5 in) aluminum edgewound voice coil for durability and superior performance.
• Offers 600 W program power handling, with a peak power capability of 1200 W.
• Designed with a weather-protected cone and coated plates suitable for outdoor environments.
• Ultra lightweight design enhances portability and ease of installation.
• Optimal for line array configurations and multiway sound systems.

Specifications

• Nominal Diameter: 260 mm (10 in)
• Impedance: 8 Ohms
• Frequency Range: 60 - 6000 Hz
• AES Power: 300 W
• Max Peak Power: 1200 W
• Power Compression:
  • @-10dB: 0.5 dB
  • @-3dB: 1.3 dB
  • @Full Power: 2.3 dB
• Recommended Max Frequency: 1800 Hz
• Voice Coil Diameter: 65 mm (2.5 in)
• Voice Coil Material: Edgewound Aluminum
• Cone Material: Water-resistant with a curvilinear profile and high damping
• Magnet Type: Neodymium
• Dimensions:
  • Overall Diameter: 260 mm (10.24 in)
  • Mounting Hole Diameter: 6.1 mm (0.24 in)
  • Total Depth: 131.8 mm (5.19 in)
• Weight: 2.7 kg (5.95 lb)
