Overview

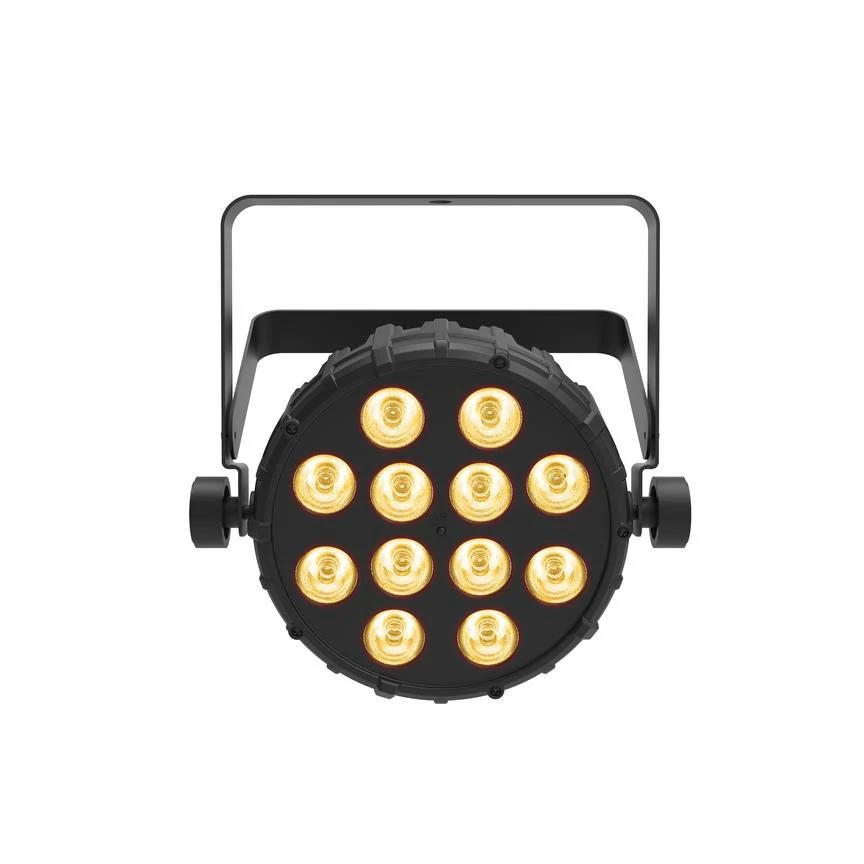

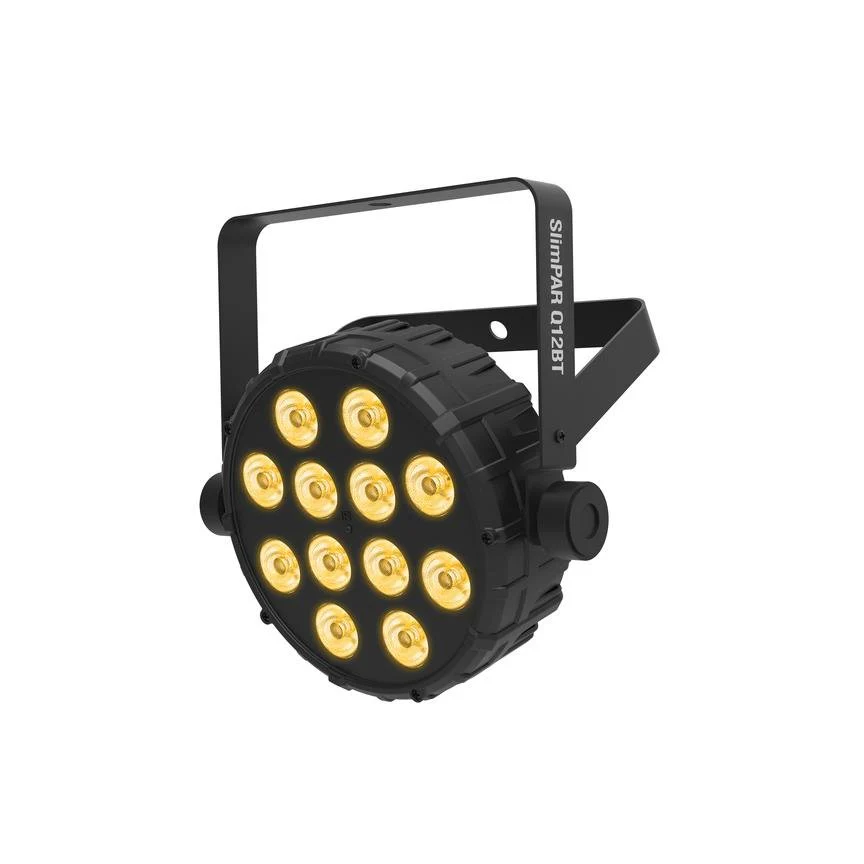

SlimPAR Q12BT is a compact wash light with built-in Bluetooth® wireless technology that allows you to control the light from any smart phone or tablet without the need for any additional hardware. SlimPAR Q12BT features 12 quad-color (RGBA) LEDs that generate a broad spectrum of colors and achieve natural-looking color temperatures. Easily set static colors or automated programs with the optional IRC-6 remote or create eye-catching effects with sound-activated and automated programs.

Features

• Compact wash light with built-in Bluetooth® wireless technology
• Control directly from a smart phone or tablet without any additional hardware
• Easily set static colors or automated programs with the optional IRC-6 remote
• Save time running cables and extension cords by power linking multiple units
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• Generate eye-catching effects with sound-activated and automated programs
• Patent Pending

Specifications

• DMX Channels: 12 or 4
• DMX Connectors: 3-pin XLR
• Max Unobstructed Distance: 150 ft (25.7 m)
• Light Source: 12 LEDs (quad-color) 3.5 W, (1.5 A), 50,000 hours life expectancy.
• Strobe Rate: 0 to 25 Hz
• PWM Frequency: 7.8 kHz
• Beam Angle: 17°
• Field Angle: 35°
• Operating Frequency: 2.4 GHz
• Illuminance: 3,650 lux @ 2 m
• Power Linking: 11 units @ 120 V; 20 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 49 W, .7 A @ 120 V, 60 Hz
  48 W, .3 A @ 230 V, 50 Hz
• Weight: 3.2 lb (1.5 kg)
• Size: 10.9 x 10.8 x 2.9 in (279 x 275 x 74 mm)
• Approvals: CE, FCC
• Bracket Mounting Hole: 12.5 mm
• Optional Controllers: IRC-6
• Bluetooth Version: 4.2

WHAT’S INCLUDED

• SlimPar Q12BT
• Power cord
• Quick Reference Guide
