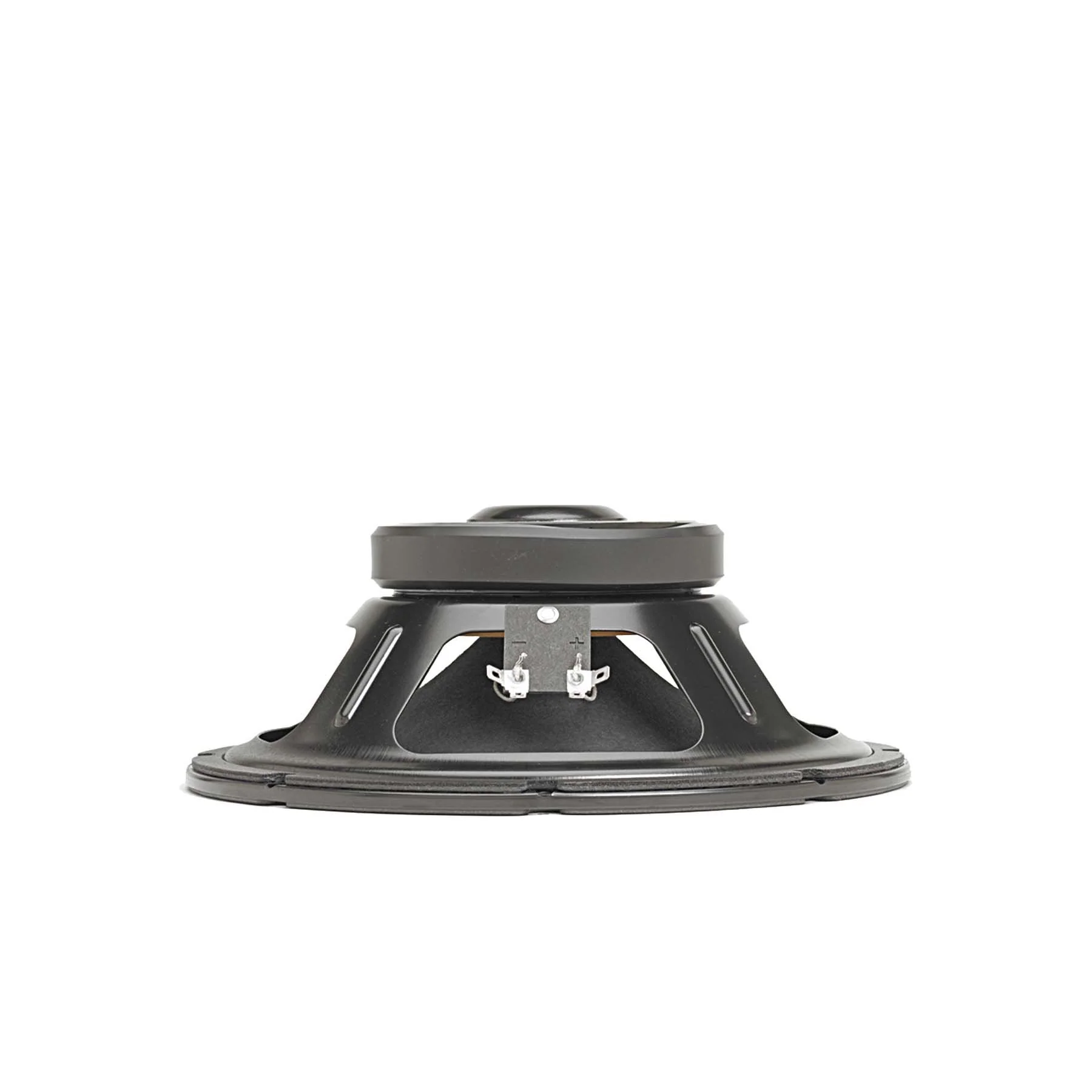

Eminence 10" American Standard 150 Watts 8 Ohms Speaker - ALPHA-10A
Overview
Recommended for professional audio mid-bass applications in a small sealed cabinet.
|
SPECIFICATION |
|
|
Nominal Basket Diameter |
10", 254 mm |
|
Nominal Impedance* |
8 Ω |
|
Power Rating* |
|
|
Program Power |
300 W |
|
Watts |
150 W |
|
Resonance |
50 Hz |
|
Usable Frequency Range |
57 Hz - 4.5 kHz |
|
Sensitivity* |
95.6 dB |
|
Magnet Weight |
20 oz. |
|
Gap Height |
0.25", 6.4 mm |
|
Voice Coil Diameter |
1.5", 38 mm |
|
THIELE & SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
50 Hz |
|
DC Resistance (Re) |
5.31 Ω |
|
Coil Inductance (Le) |
0.66m H |
|
Mechanical Q (Qms) |
5.21 |
|
Electromagnetic Q (Qes) |
0.66 |
|
Total Q (Qts) |
0.59 |
|
Compliance Equivalent Volume (Vas) |
82.2 liters / 2.9 cu.ft. |
|
Peak Diaphragm Displacement Volume (Vd) |
114 cc |
|
Mechanical Compliance of Suspension (Cms) |
0.46 mm/N |
|
BL Product (BL) |
7.5 T-M |
|
Diaphragm Mass Inc. Airload (MMs) |
22 grams |
|
Efficiency Bandwidth Product (EBP) |
76 |
|
Maximum Linear Excursion (Xmax) |
3.2 mm |
|
Surface Area of Cone (Sd) |
355.4 cm2 |
|
Maximum Mechanical Limit (Xlim) |
9.1 mm |
|
MOUNTING INFORMATION |
|
|
Recommended Enclosure Volume |
|
|
Sealed |
8.5-11.3 liters / 0.3-0.4 cu.ft. |
|
Vented |
28.3-53.8 liters / 1-1.9 cu.ft. |
|
Driver Volume Displaced |
0.034 cu.ft. / 0.95 liters |
|
Overall Diameter |
10.11", 256.8 mm |
|
Baffle Hole Diameter |
9.13", 231.9 mm |
|
Front Sealing Gasket |
Yes |
|
Rear Sealing Gasket |
Yes |
|
Mounting Holes Diameter |
0.23", 5.8mm |
|
Mounting Holes B.C.D. |
9.6", 243.8mm |
|
Depth |
3.9", 99.1 mm |
|
Net Weight |
4.5 lbs, 2.04 kg |
|
Shipping Weight |
5.6 lbs, 2.54 kgs |
|
MATERIALS OF CONSTRUCTION |
|
|
Coil Construction |
Copper voice coil |
|
Coil Former |
Polyimide former |
|
Magnet Composition |
Ferrite magnet |
|
Core Details |
Vented and extended core |
|
Basket Materials |
Pressed steel basket |
|
Cone Composition |
Paper cone |
|
Cone Edge Composition |
Cloth cone edge |
|
Dust Cap Composition |
Solid composition paper dust cap |
