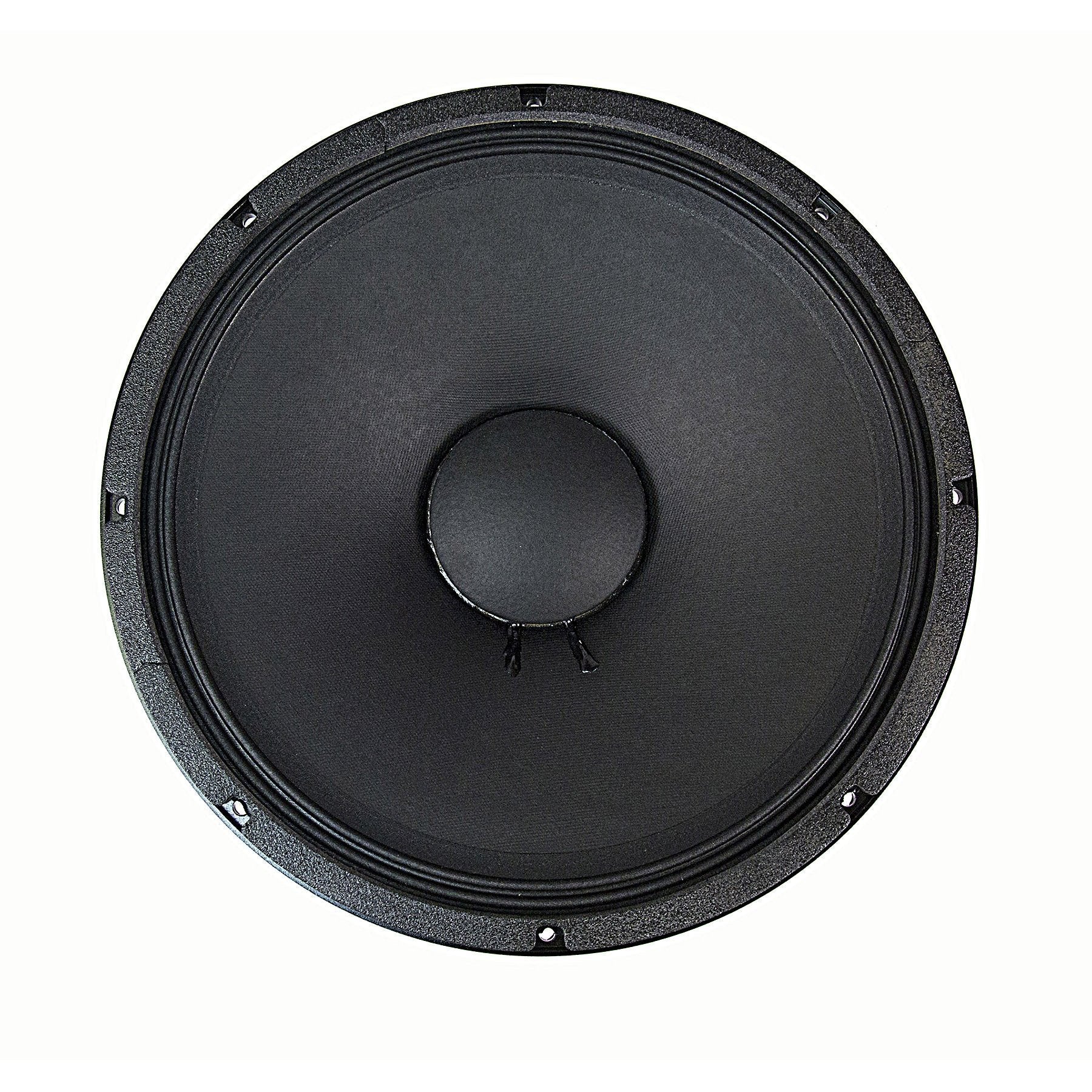

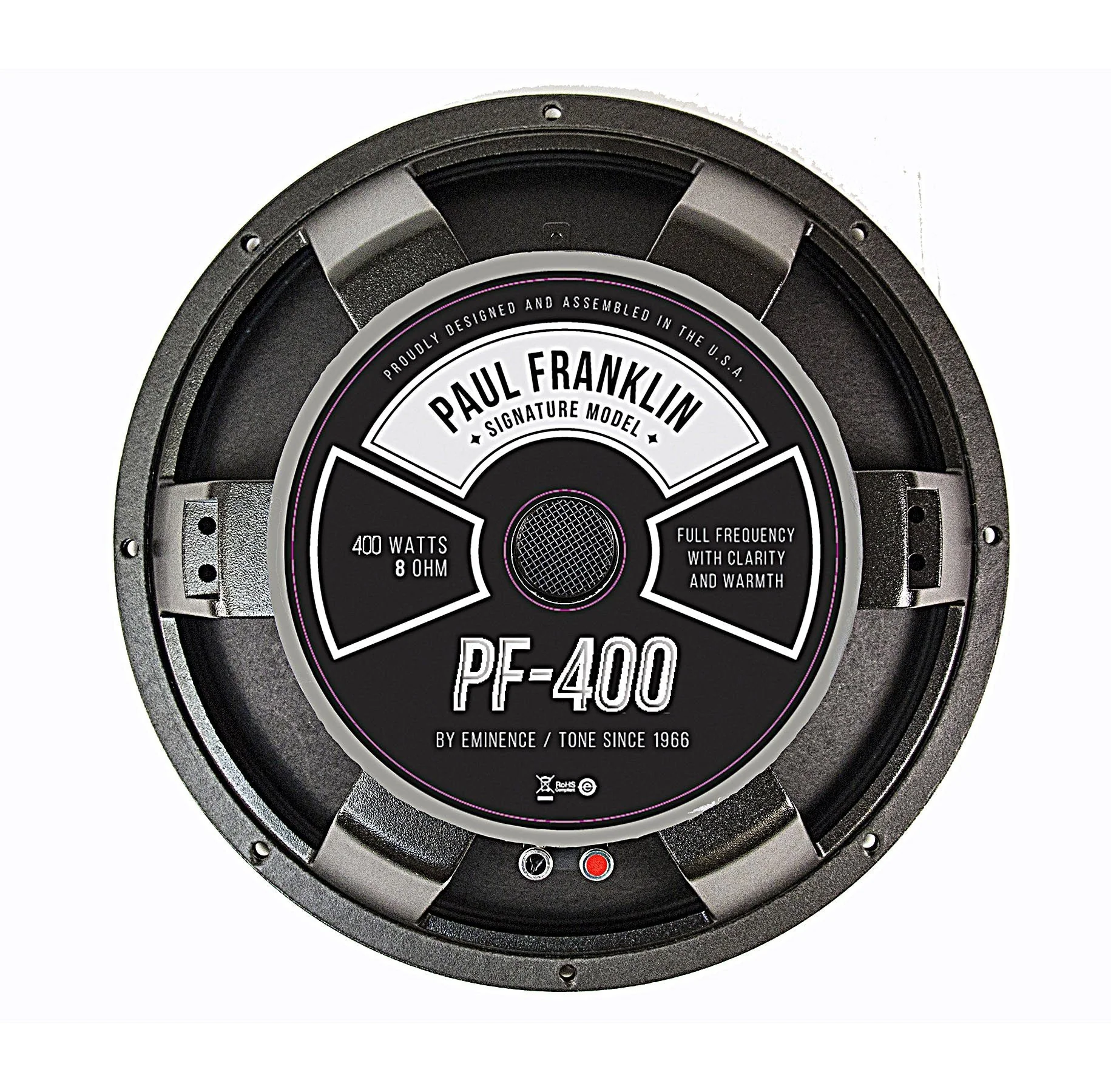

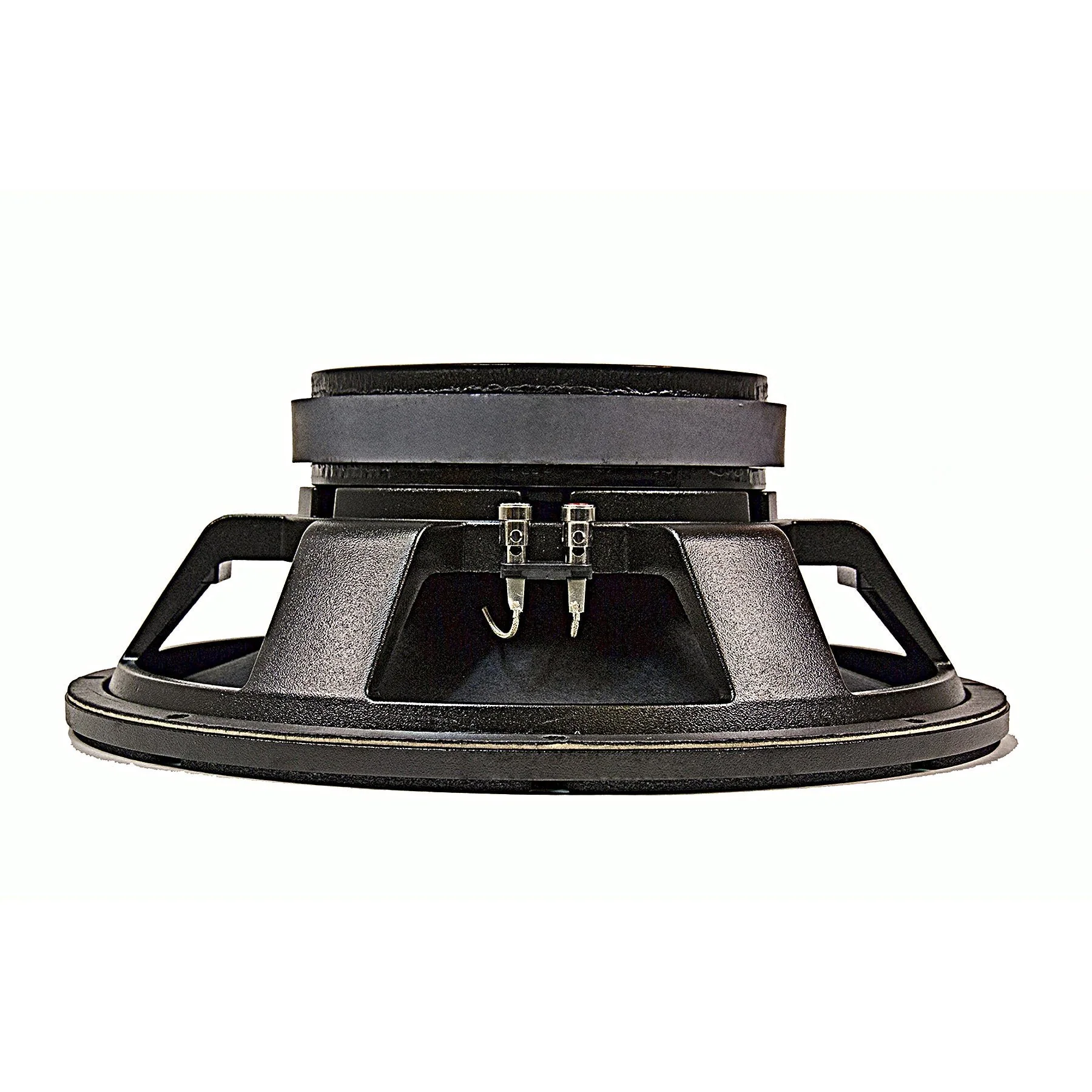

Eminence 15" 8 ohm 400 Watt Signature Guitar Speaker - PF400
Overview
15" version of the popular PF-350 12". Offering complete tonal balance from top to bottom, this attack-sensitive and powerful 15 inch model was co-developed with veteran session and touring pro Paul Franklin. With headroom to spare, the PF-400?s tone transfers from low volume to very loud with warmth and clarity, making it ideal for pedal steelers and 6-stringers alike.
Specifications
|
SPECIFICATION |
|
|
Nominal Basket Diameter |
15", 381 mm |
|
Nominal Impedance* |
8 Ω |
|
Power Rating* |
|
|
Program Power |
N/A |
|
Watts |
400 W |
|
Resonance |
58 Hz |
|
Usable Frequency Range |
60 Hz - 3.6 kHz |
|
Sensitivity* |
102 dB |
|
Magnet Weight |
109 oz. |
|
Gap Height |
0.285", 7.2 mm |
|
Voice Coil Diameter |
4", 102 mm |
|
THIELE & SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
58 Hz |
|
DC Resistance (Re) |
7.45 Ω |
|
Coil Inductance (Le) |
0.46m H |
|
Mechanical Q (Qms) |
6.37 |
|
Electromagnetic Q (Qes) |
0.55 |
|
Total Q (Qts) |
0.5 |
|
Compliance Equivalent Volume (Vas) |
120.85 liters / 4.27 cu.ft. |
|
Peak Diaphragm Displacement Volume (Vd) |
70.3 cc |
|
Mechanical Compliance of Suspension (Cms) |
0.11 mm/N |
|
BL Product (BL) |
18.33 T-M |
|
Diaphragm Mass Inc. Airload (MMs) |
67 grams |
|
Efficiency Bandwidth Product (EBP) |
106 |
|
Maximum Linear Excursion (Xmax) |
0.79 mm |
|
Surface Area of Cone (Sd) |
889.6 cm2 |
|
Maximum Mechanical Limit (Xlim) |
0 mm |
|
MOUNTING INFORMATION |
|
|
Recommended Enclosure Volume |
|
|
Sealed |
N/a |
|
Vented |
N/a |
|
Driver Volume Displaced |
0.152 cu.ft. / 4.31 liters |
|
Overall Diameter |
15.28", 388.1 mm |
|
Baffle Hole Diameter |
14.06", 357.1 mm |
|
Front Sealing Gasket |
Yes |
|
Rear Sealing Gasket |
Yes |
|
Mounting Holes Diameter |
0.26", 6.6mm |
|
Mounting Holes B.C.D. |
14.57", 370.1mm |
|
Depth |
6", 152.4 mm |
|
Net Weight |
22.6 lbs, 10.25 kg |
|
Shipping Weight |
24.8 lbs, 11.25 kgs |
|
MATERIALS OF CONSTRUCTION |
|
|
Coil Construction |
Edge Wound Aluminum |
|
Coil Former |
Polyimide Former |
|
Magnet Composition |
Ferrite magnet |
|
Core Details |
Vented core |
|
Basket Materials |
Die-cast aluminum basket |
|
Cone Composition |
Paper cone |
|
Cone Edge Composition |
Coth edge |
|
Dust Cap Composition |
Paper dust cap |
Overview
15" version of the popular PF-350 12". Offering complete tonal balance from top to bottom, this attack-sensitive and powerful 15 inch model was co-developed with veteran session and touring pro Paul Franklin. With headroom to spare, the PF-400?s tone transfers from low volume to very loud with warmth and clarity, making it ideal for pedal steelers and 6-stringers alike.
Specifications
|
SPECIFICATION |
|
|
Nominal Basket Diameter |
15", 381 mm |
|
Nominal Impedance* |
8 Ω |
|
Power Rating* |
|
|
Program Power |
N/A |
|
Watts |
400 W |
|
Resonance |
58 Hz |
|
Usable Frequency Range |
60 Hz - 3.6 kHz |
|
Sensitivity* |
102 dB |
|
Magnet Weight |
109 oz. |
|
Gap Height |
0.285", 7.2 mm |
|
Voice Coil Diameter |
4", 102 mm |
|
THIELE & SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
58 Hz |
|
DC Resistance (Re) |
7.45 Ω |
|
Coil Inductance (Le) |
0.46m H |
|
Mechanical Q (Qms) |
6.37 |
|
Electromagnetic Q (Qes) |
0.55 |
|
Total Q (Qts) |
0.5 |
|
Compliance Equivalent Volume (Vas) |
120.85 liters / 4.27 cu.ft. |
|
Peak Diaphragm Displacement Volume (Vd) |
70.3 cc |
|
Mechanical Compliance of Suspension (Cms) |
0.11 mm/N |
|
BL Product (BL) |
18.33 T-M |
|
Diaphragm Mass Inc. Airload (MMs) |
67 grams |
|
Efficiency Bandwidth Product (EBP) |
106 |
|
Maximum Linear Excursion (Xmax) |
0.79 mm |
|
Surface Area of Cone (Sd) |
889.6 cm2 |
|
Maximum Mechanical Limit (Xlim) |
0 mm |
|
MOUNTING INFORMATION |
|
|
Recommended Enclosure Volume |
|
|
Sealed |
N/a |
|
Vented |
N/a |
|
Driver Volume Displaced |
0.152 cu.ft. / 4.31 liters |
|
Overall Diameter |
15.28", 388.1 mm |
|
Baffle Hole Diameter |
14.06", 357.1 mm |
|
Front Sealing Gasket |
Yes |
|
Rear Sealing Gasket |
Yes |
|
Mounting Holes Diameter |
0.26", 6.6mm |
|
Mounting Holes B.C.D. |
14.57", 370.1mm |
|
Depth |
6", 152.4 mm |
|
Net Weight |
22.6 lbs, 10.25 kg |
|
Shipping Weight |
24.8 lbs, 11.25 kgs |
|
MATERIALS OF CONSTRUCTION |
|
|
Coil Construction |
Edge Wound Aluminum |
|
Coil Former |
Polyimide Former |
|
Magnet Composition |
Ferrite magnet |
|
Core Details |
Vented core |
|
Basket Materials |
Die-cast aluminum basket |
|
Cone Composition |
Paper cone |
|
Cone Edge Composition |
Coth edge |
|
Dust Cap Composition |
Paper dust cap |
Original: $269.99
-65%$269.99
$94.50Description
