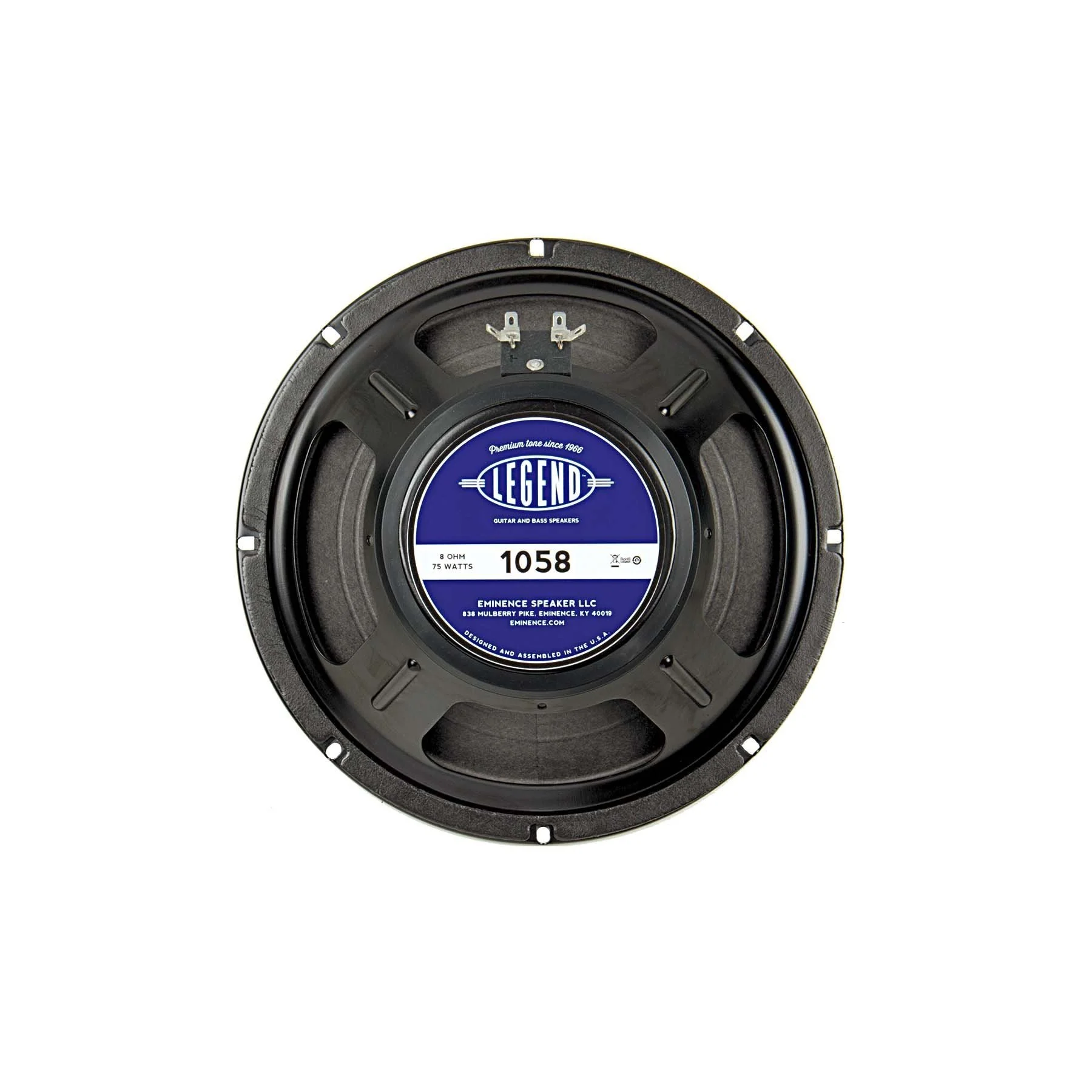

Application

10" Open or Closed Back

Configuration

1, 2, or 4 X 10"

Low End Response

Moderate

Low End Shape

Chunky

Mid-Range Response

Moderate

Mid-Range Shape

Warm

High-End Response

Moderate

Volume/Power

Louder

Overall Coloration*

Vintage American tone with punchy lows and warm, smooth, bluesy mids and highs. Fatter Legend 1028K tone with more depth.

Break-up Modes

Medium

Power Range

Up to 75 watts

Instrument*

Lead/Rhythm Guitar

Genre of Music*

Country, Blues, Rock, Jazz

SPECIFICATION

Nominal Basket Diameter

10", 254 mm

Nominal Impedance*

8 Ω

Power Rating*

Program Power

N/A

Watts

75 W

Resonance

97 Hz

Usable Frequency Range

100 Hz - 5 kHz

Sensitivity*

98.7 dB

Magnet Weight

16 oz.

Gap Height

0.25", 6.4 mm

Voice Coil Diameter

1.5", 38 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs)

97 Hz

DC Resistance (Re)

7.49 Ω

Coil Inductance (Le)

0.56m H

Mechanical Q (Qms)

17.78

Electromagnetic Q (Qes)

1.21

Total Q (Qts)

1.13

Compliance Equivalent Volume (Vas)

26.4 liters / 0.93 cu.ft.

Peak Diaphragm Displacement Volume (Vd)

0 cc

Mechanical Compliance of Suspension (Cms)

0.16 mm/N

BL Product (BL)

8 T-M

Diaphragm Mass Inc. Airload (MMs)

17 grams

Efficiency Bandwidth Product (EBP)

80

Maximum Linear Excursion (Xmax)

0 mm

Surface Area of Cone (Sd)

344.9 cm2

Maximum Mechanical Limit (Xlim)

N/A

MOUNTING INFORMATION

Recommended Enclosure Volume

Sealed

Acceptable

Vented

Acceptable

Driver Volume Displaced

0.033 cu.ft. / 0.93 liters

Overall Diameter

10.11", 256.8 mm

Baffle Hole Diameter

9.13", 231.9 mm

Front Sealing Gasket

Yes

Rear Sealing Gasket

Yes

Mounting Holes Diameter

0.23", 5.8mm

Mounting Holes B.C.D.

9.6", 243.8mm

Depth

4.1", 104.1 mm

Net Weight

4.4 lbs, 2 kg

Shipping Weight

5.4 lbs, 2.45 kgs

MATERIALS OF CONSTRUCTION

Coil Construction

Copper voice coil

Coil Former

Polyimide former

Magnet Composition

Ferrite magnet

Core Details

Non-vented core

Basket Materials

Pressed steel basket

Cone Composition

Paper cone

Cone Edge Composition

Paper cone edge

Dust Cap Composition

Solid composition felt dust cap
