Overview

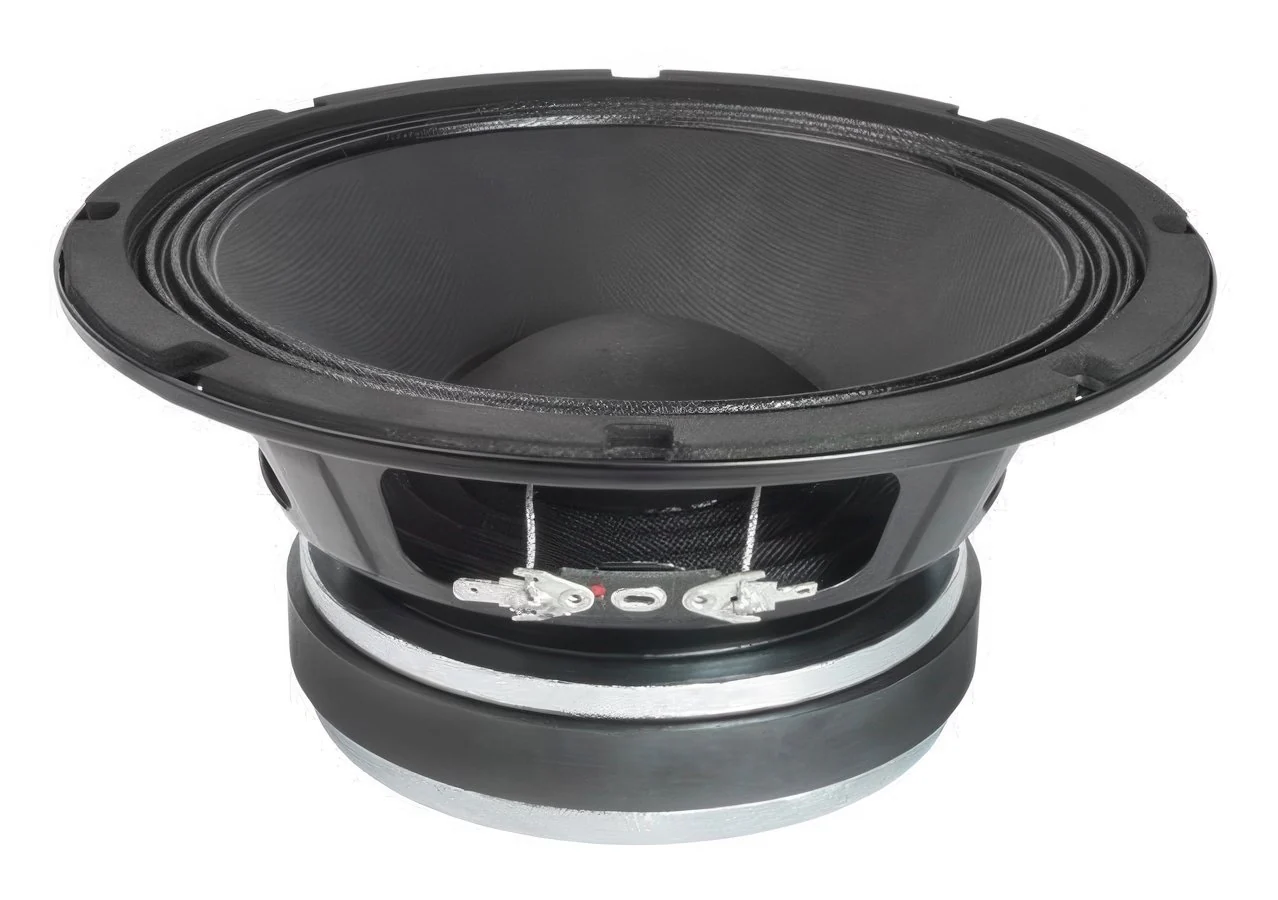

The Faital PRO 8FE300-4 is a robust and versatile 8-inch mid-bass woofer designed for professional audio systems. With an AES power handling of 250W and a peak power of 500W, it provides high efficiency and powerful sound suitable for a range of applications, including PA systems, bass guitar systems, and home hi-fi setups. The woofer features a weatherproof treated paper cone, ensuring reliable performance even in extreme conditions. Its high sensitivity of 93 dB and wide frequency range of 80 to 5000 Hz make it an excellent choice for delivering clean mids and tight bass.

Features:

• 8-inch mid-bass woofer
• 250W AES power handling
• 500W peak power
• High sensitivity of 93 dB
• Frequency range: 80-5000 Hz
• Weatherproof treated paper cone

Specifications:

• Nominal Diameter: 8 in (200 mm)
• Overall Diameter: 8.23 in (209 mm)
• Bolt Circle Diameter: 7.78 in (197.5 mm)
• Baffle Cutout Diameter: 7.20 in (183 mm)
• Depth: 3.74 in (95 mm)
• Flange and Gasket Thickness: 0.28 in (7 mm)
• Net Weight: 6.7 lb (3.04 kg)
• Shipping Weight: 7.1 lb (3.2 kg)
• Nominal Impedance: 4 Ohm
• Minimum Impedance: 3.8 Ohm
• Voice Coil Diameter: 2.05 in (52 mm)
• Voice Coil Material: Aluminum
• Voice Coil Former: Glass Fiber
• Voice Coil Depth: 0.54 in (13.6 mm)
• Magnetic Gap Depth: 0.31 in (8 mm)
• Flux Density: 1.1 T
• Basket Material: Steel
• Magnet Material: Ferrite Ring
• Surround Type: Triple Roll
• Spider Profile: 1x variable height waves
• Frequency Range: 80-5000 Hz
• Sensitivity: 93 dB (1W/1m)
• Maximum Excursion (Xmax): 5.47 mm
• Maximum Mechanical Excursion (Xdamage): 11.6 mm
• Resonance Frequency (Fs): 70 Hz
• DC Resistance (Re): 3.3 Ohm
• Electrical Q (Qes): 0.43
• Mechanical Q (Qms): 11.1
• Total Q (Qts): 0.41
• Compliance Equivalent Volume (Vas): 14.0 L
• Diaphragm Area (Sd): 223 cm²
• Moving Mass (Mms): 25.7 g
