Overview

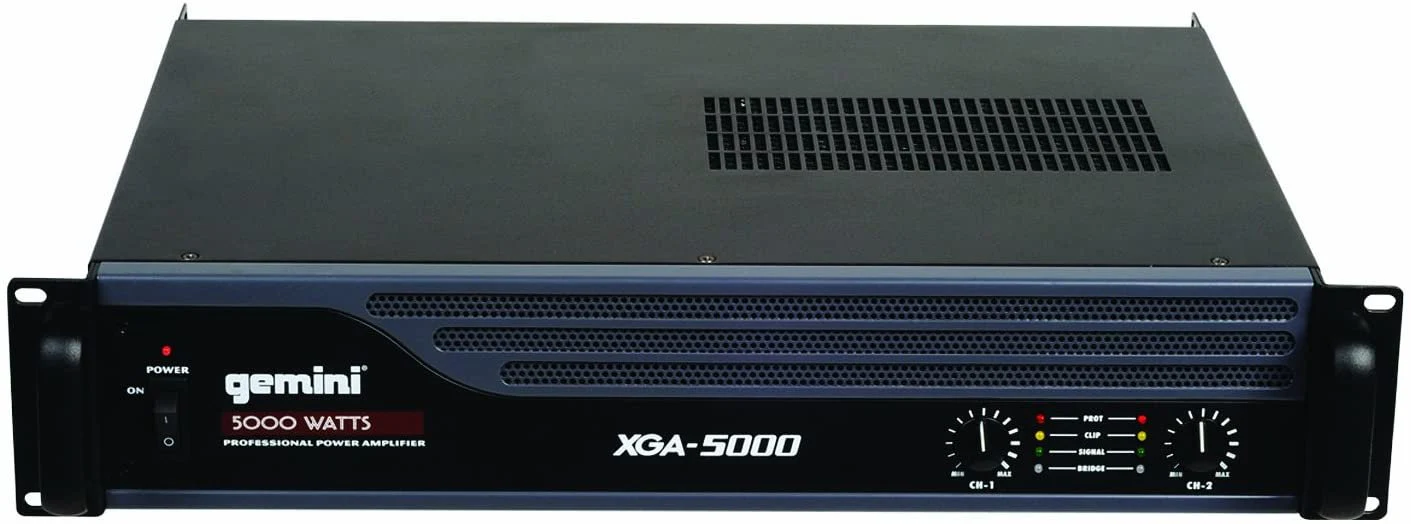

The Gemini XGA-5000 is a two-space, high output power amp that offers clean, reliable power in a durable, lightweight enclosure. With 5000 watts of Instant Peak Power (1100 watts RMS), the XGA-5000 is ideal for powering PA systems and DJ rigs. To ensure seamless, reliable performance, the amp features front-to-rear airflow and a variable-speed cooling fan for thermal stability, DC output protection and short circuit protection.

The XGA-5000 boasts XLR and ¼-inch balanced inputs and three Speakon outputs, one for bridged mono operation and thye other two for stereo operation. Binding post output is available as well for banana plugs or bare wire. The unit also provides front panel indicators for Signal, Clip, Protect and Bridge, plus level controls for channels 1 and 2. Selectable modes for Stereo and Mono Bridge give you even more flexibility, while its sleek, lightweight design ensures total portability.

Specs:

• 5000 Watt IPP High Power output to drive professional loudspeakers without clipping
• Front-to-rear airflow and cooling fan for thermal stability and reliability
• XLR and ¼ balanced
• Stereo and Mono Bridge
• Variable speed fan for low noise
• Comprehensive front panel indicators including signal, clip, protect and bridge
• 3 Speakon outputs for Channels A/B/Bridge
• 5-way binding banana plug channel outputs
• Bridge control switch
• DC output protection and Short circuit protection
• Frequency response 10Hz “ 50kHz at 1.5 dB
• Ground lift switch
• Total Harmonic Distortion: Less than 0.1%
• Input sensitivity & Impedance: 0.77v
• Signal to Noise (20 Hz “ 20 kHz) > 100dB
• Dimensions (WxDxH): 19 x 13.8 x 3.5
• Weight: 23.42 Lbs
