Overview

Exceptional Performance

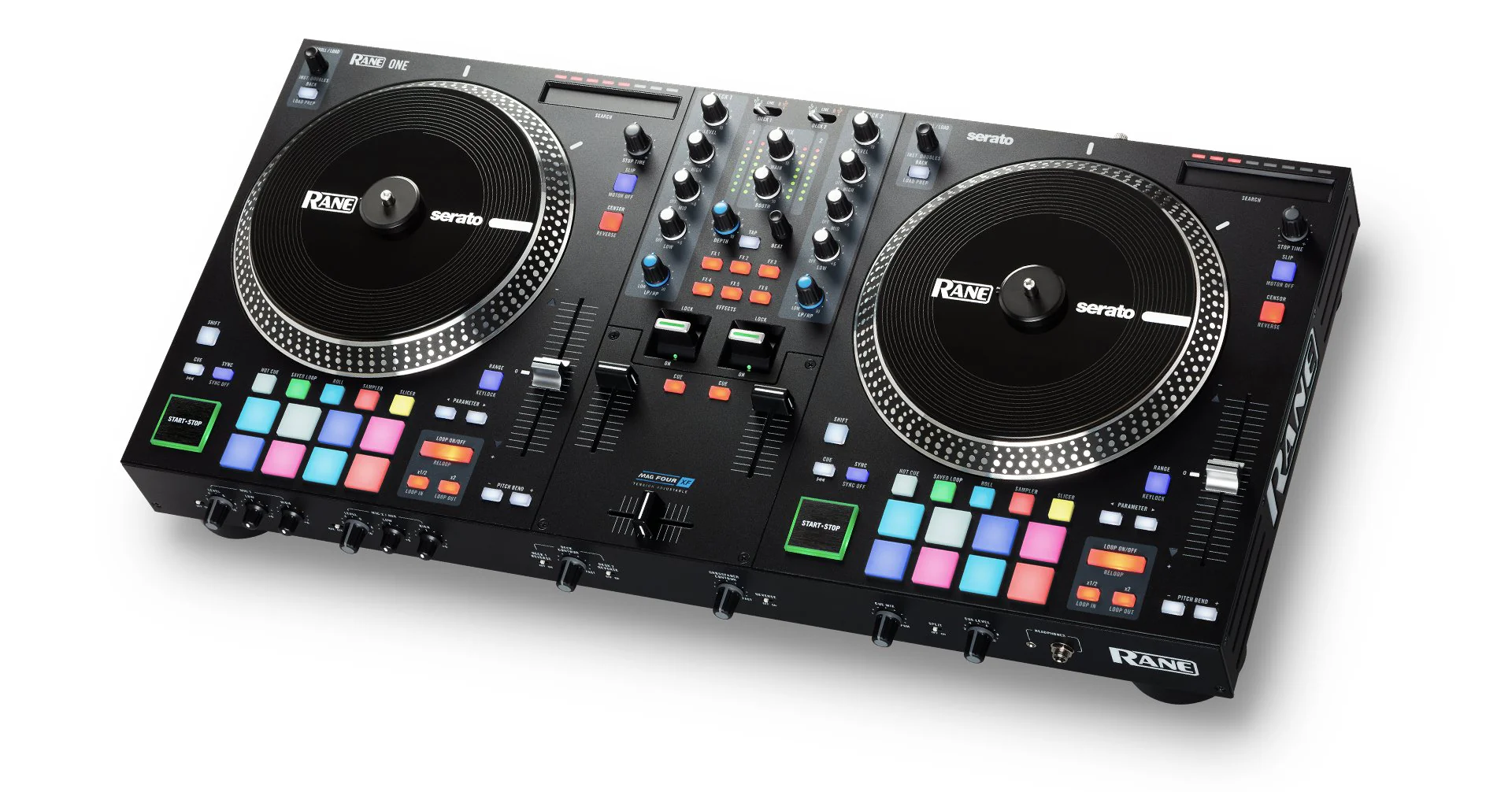

The RANE ONE Motorized DJ controller takes the high-performance features, reliability and exceptional quality we’re trusted for and without compromise, combines them into the ultimate Motorized DJ Controller.

Trusted RANE Sound

The ONE continues RANE’s reputation for high-end, no-compromise sound quality and creative freedom. The gig-ready ONE represents the pinnacle in music control for DJs commanding the best in performance and sound.

Intuitive, Familiar Layout

The ONE gives DJ’s a familiar, performance driven, intuitive layout with everything you need, where you need it. Take control with the multi-function performances pads, aluminum FX paddles, dedicated loop section and mixer controls.

Motorize Your Performance

The ONE features authentic motorized 7” turntable platters for high-performance precision. Experience the traditional vinyl-like touch, with all the creative tools the digital world has to offer. With support for leading DJ software platforms like Serato DJ Pro, Algoriddim's djay Pro AI, and Virtual DJ, the ONE brings a true turntable experience to the portable arena.

Get Connected

With all the pro-connections you need, the RANE ONE gives multiple connectivity for the ultimate in flexibility. With 3 stereo outputs, dual mic and dual USB Laptop connections, Phono/Line and auxiliary inputs. The ONE has you covered.

Cut Like a Pro

If you like scratching, you’re going to love the MAG FOUR crossfader. Our lightest and smoothest fader ever, the MAG FOUR gives you swift and precise control over your cuts, with a software cut-in adjustment available in Serato DJ Pro.

Performance Pads

The ONE has 8 multi-function performance pads per deck for full creative control. Each deck includes Hot Cue, Pitch ‘n Time, Saved Loop, Roll, Sampler, Slicer, as well as Serato DJ Pro’s Scratch Bank feature. Everything you need for creative control.

FX Control

With 6 radio-style stackable FX buttons, instantly activate any combination of software FX with a single press, fine-tune with depth and beat parameter controls, then activate with the independent aluminum paddle controls with latch or momentary positions.

Features

• 7.2" motorized platters with quick release acrylic disks
• Instant access software FX with two metal FX paddles
• Ultralight MAG FOUR crossfader
• High/Low-pass filter and 3-band EQ
• Dedicated loop controls
• Independent multi-mode performance pads including Serato
• Scratch banks
• Turntable style start/stop
• XLR main and booth outputs
• 2 line/phono inputs
• 2 TRS/XLR microphone inputs
• 2 USB computer connections
• Portable DJ controller
• Weight: 24 lb.
• Serato DJ Pro included

Digital Audio

• Converters: Cirrus Logic, 24-bit PCM, 48kH
• Digital Signal Processing: 32-bit, Floating Pont, Double precision
• Dynamic Range (A-weighted, unity gain)
• ADC: 113dB
• DAC: 113dB
• CD Input to Analog Output: 110dB
• CD Input to USB Output: 113dB
• USB Input to Analog Output: 113dB

Inputs

• Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS, Mic/Line switchable)
• Analog Gain: 25dB
• Maximum Input: 110mV
• Gain Trim: Off to +26dB (unity at center)
• Tone Control: 2-band
• Aux Input (RCA stereo pair)
• Maximum Input: 4Vrms
• Dynamic Range (A-weighted): 114dB
• Gain Trim: Off to +12dB
• Tone Control: 2-band
• CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
• CD: Line
• Maximum Input: 4Vrms
• Gain Trim: Off to +12dB
• Tone Control: 3-band, full-cut to +10dB
• THD+N (20kHz BW @ 1kHz): 0.004%
• Phono: RIAA
• RIAA Curve: +/-0.25dB
• Gain (@ 1kHz): 31.5dB
• Maximum Input (@ 1kHz): 106mV
• Dynamic Range (A-weighted): 102dB

Outputs

• Main Outputs (XLR)
• Gain Trim: Off to 0dB
• Maximum Output: 8Vrms
• THD+N (20kHz BW @ 1kHz): 0.004%
• Frequency Response: Flat
• Booth Outputs (XLR)
• Gain Trim: Off to 0dB
• Maximum Output: 8Vrms
• THD+N (20kHz BW @ 1kHz): 0.004%
• Frequency Response: Flat
• Master Outputs (RCA stereo pair)
• Maximum Output: 4Vrms
• THD+N (20kHz BW @ 1kHz): 0.004%
• Frequency Response: Flat
• Headphone Outputs (1/4”/6.35 mm & 1/8”/3.5 mm TRS)
• Maximum Output Voltage: 4Vrms (no load): 50mW (50 ohms)
• Output Power: 0.004%
