Overview

BRAND NEW FACTORY SEALED, NEW OLD STOCK

We unearthed one of these gems from the depths of our warehouse during Spring Cleaning.

No returns if item is opened or installed.

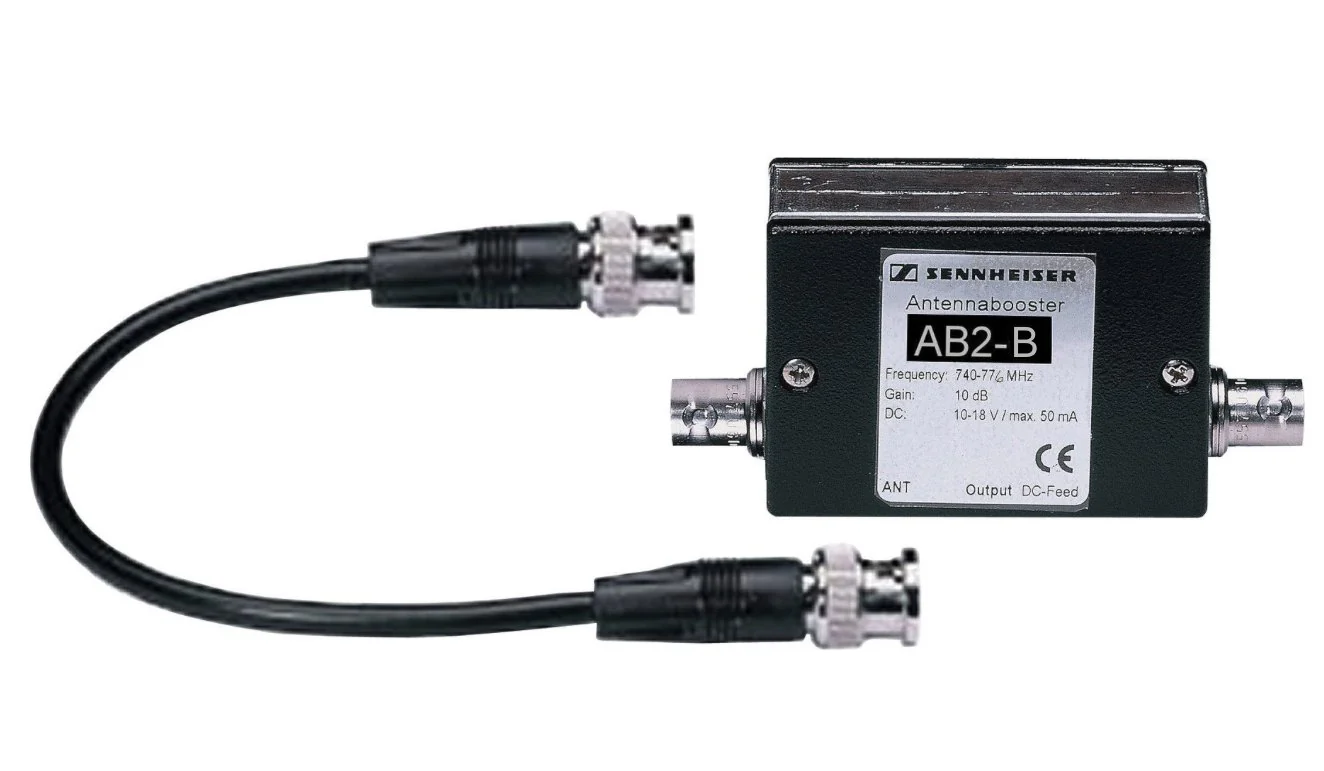

The AB 2 is a high-quality frequency-selective antenna booster for increasing the RF signal strength when operating several Sennheiser evolution wireless series receivers with a single pair of antennas via the ASP 2 passive antenna splitter. The antenna boosters are powered via the NT 1 power supply unit of the ASP 2. This NT 1 also powers the receivers.

Features

• Efficient suppression of RF signals outside the passband
• High-quality selective booster
• Possibility to daisy-chain two AB 2 in one antenna lead
• RF frequency range 626-662MHz
• Switching Bandwidth > 36 MHz
• Gain > 10 dB
• 626-662MHz
• Antenna connector BNC
• Impedance 50 Ohms
• Power supply 10-18V DC
• Dimensions 3.75" x 1.85' x .8"
• Weight 60 g
