Overview

The Taramps SMART5BASS is a powerful and versatile Class-D monoblock amplifier designed specifically for car audio systems, especially subwoofers. Featuring Taramps' exclusive Power Control System technology, this amplifier ensures exceptional quality at low frequencies and enhanced protection by monitoring the entire amplifier's operation. It is capable of delivering 5000 watts RMS power at various impedances (0.5 to 2 ohms), making it a reliable choice for high-performance car audio setups.

Features:

• Class-D monoblock amplifier
• 5000W RMS power output at 0.5, 1, and 2 ohms
• Exclusive Power Control System for enhanced low-frequency performance
• High-efficiency design with up to 84% efficiency at 2 ohms

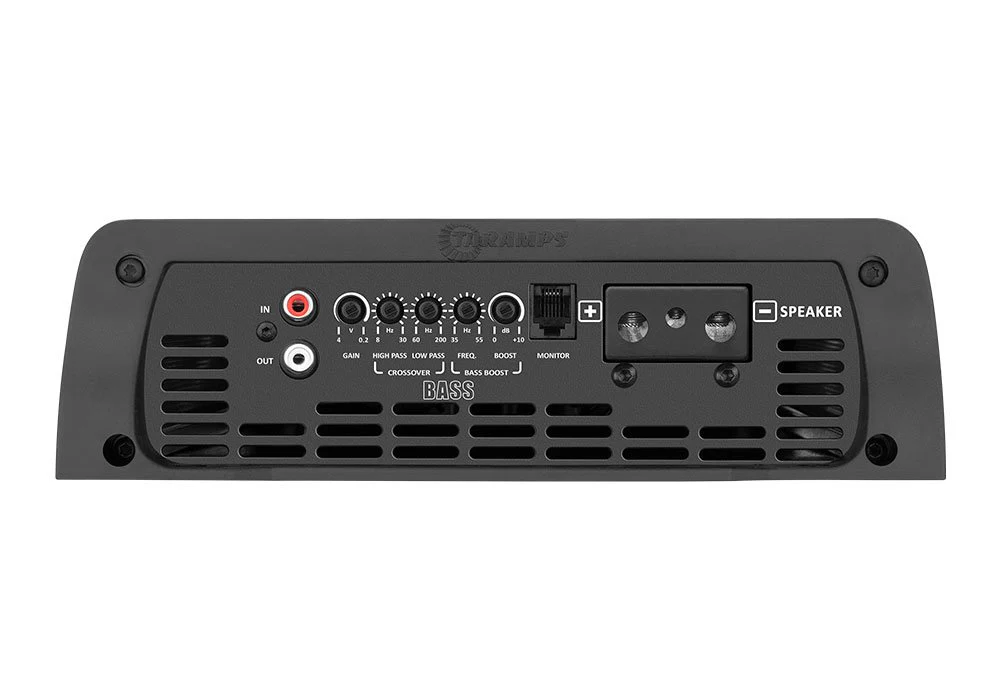

• Variable crossovers (HPF and LPF) and bass boost for customized sound
• Comprehensive protection systems including short circuit, low impedance, and thermal protection

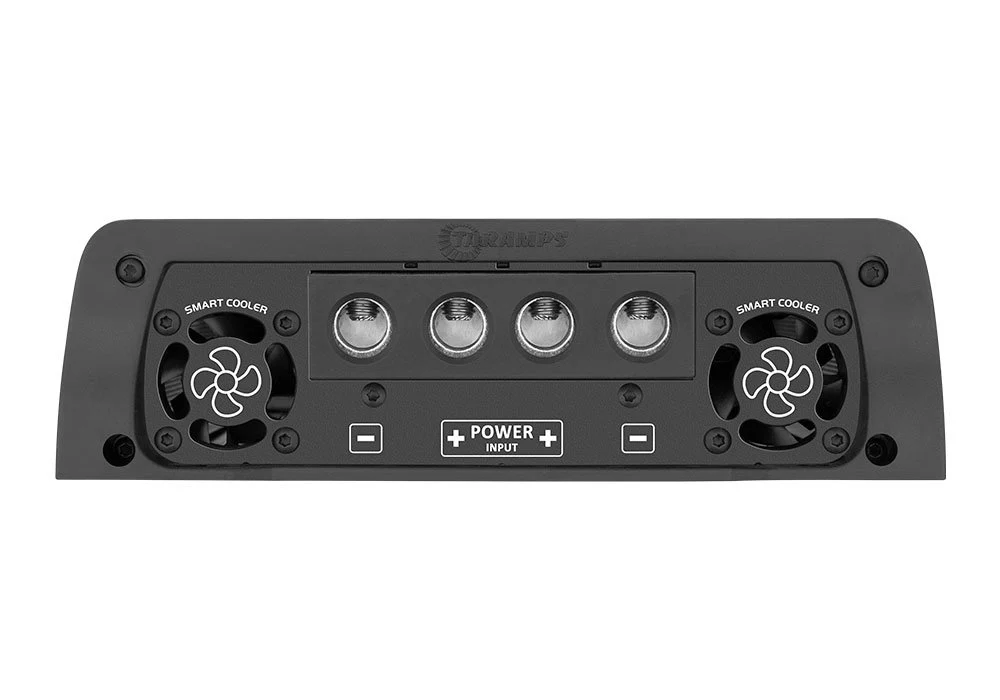

• Robust power input supports up to 2 x 2/0 AWG (70mm²) cables
• CLIP monitor output for real-time clipping status

Specifications:

• Operation Class: Class D
• Number of Channels: 1
• Max Power Output @ 14.4 VDC:
  • 0.5 Ohm: 5000W RMS
  • 1 Ohm: 5000W RMS
  • 2 Ohms: 5000W RMS
  • 4 Ohms: 2700W RMS
• Frequency Response: 8Hz - 200Hz (-3dB)
• Input Sensitivity: 4V to 0.2V
• Signal-to-Noise Ratio (SNR): >90dB
• Crossovers:
  • HPF: 8Hz - 30Hz (-12dB/8ª) Variable
  • LPF: 60Hz - 200Hz (-12dB/8ª) Variable
• Bass Boost: 35Hz - 55Hz, 0 to +10dB
• Efficiency:
  • 76% @ 0.5 Ohm
  • 80% @ 1 Ohm
  • 84% @ 2 Ohms
• Input Impedance: 10K ohms
• Output Impedance: 0.5 to 2 ohms
• Protection Systems: Short circuit, low impedance, high/low voltage, thermal
• Power Consumption:
  • Rest: 2.60A
  • Music (Max): 230A @ 0.5 Ohm, 215.5A @ 1 Ohm, 210A @ 2 Ohms
  • Sinusoidal Signal (Max): 461A @ 0.5 Ohm, 431A @ 1 Ohm, 420A @ 2 Ohms
• Dimensions (WxHxD): 9.37" x 2.79" x 16.8" (238 x 71 x 427mm)
• Weight: 12.79 lbs (5.80 kg)
