Overview

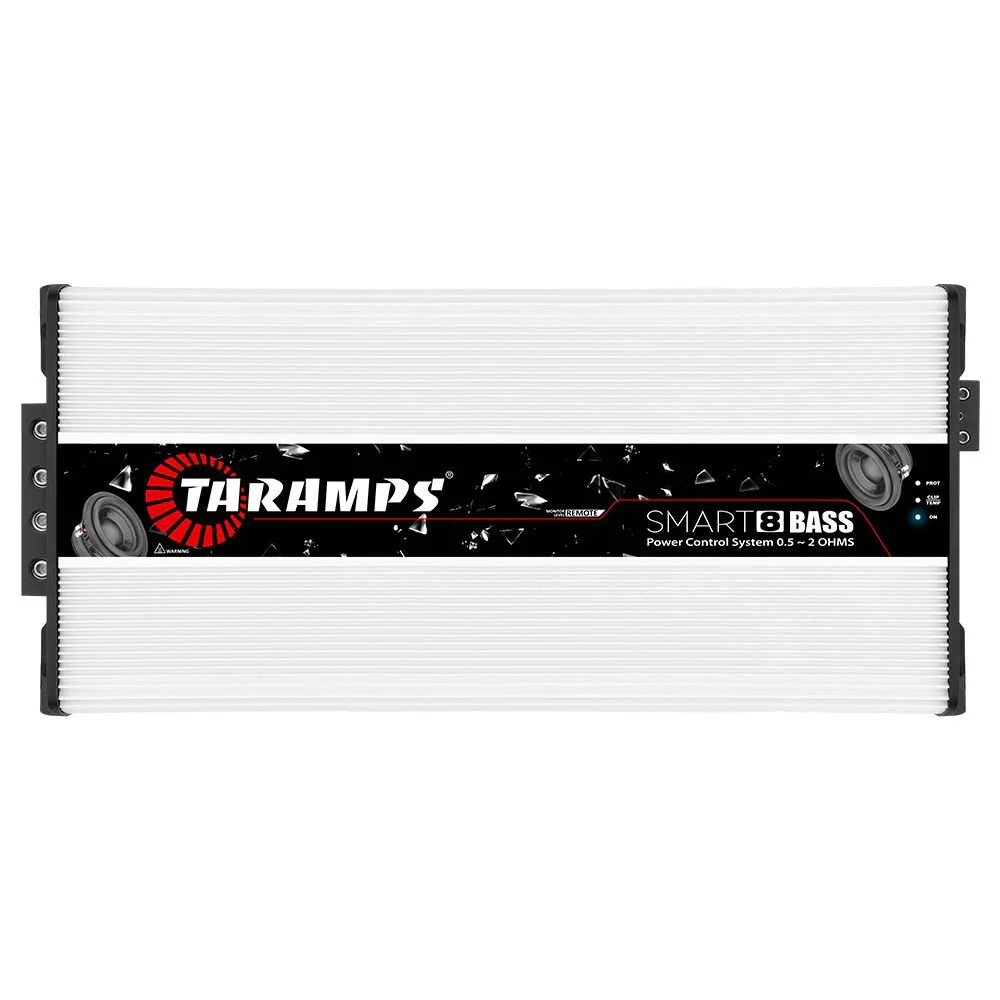

The Taramps SMART8 BASS is a powerful car audio amplifier designed to deliver 8000 watts RMS of bass at 0.5 to 2 ohms. This high-efficiency amplifier is perfect for subwoofers and is equipped with the exclusive Power Control System, which ensures optimal performance and protection during operation. Its automatic impedance feature makes it versatile and compatible with a wide range of subwoofer configurations.

Features

• High Power Output: 8000W RMS at 0.5, 1, and 2 Ohms, delivering robust bass.
• Power Control System: Ensures safety and quality by monitoring the amplifier during operation.
• Multi-Impedance Capability: Automatically adjusts to work between 0.5 and 2 Ohms.
• Variable Bass Boost: Adjustable from 35Hz to 55Hz with up to +10dB boost.
• Efficient Design: High efficiency with minimal heat generation.

Specifications

• Number of Channels: 1
• Power Output:
  • @ 0.5 Ohm: 8000W RMS
  • @ 1 Ohm: 8000W RMS
  • @ 2 Ohms: 8000W RMS
  • @ 4 Ohms: 4800W RMS
• Frequency Response: 8Hz - 200Hz (-3dB)
• Total Harmonic Distortion (THD): < 0.9%
• Signal to Noise Ratio: > 90dB
• Input Sensitivity: 0.2V - 4V
• Crossover:
  • High Pass Filter (HPF): 8Hz - 30Hz (-12dB/octave) Variable
  • Low Pass Filter (LPF): 60Hz - 200Hz (-12dB/octave) Variable
• Bass Boost: Frequency 35Hz - 55Hz, Boost 0dB to +10dB
• Efficiency: 78% @ 0.5 Ohm, 82% @ 1 Ohm, 86% @ 2 Ohms
• Protection System: Output short-circuit, low/high supply voltage, and thermal protection
• Supply Voltage: 9V - 17V DC
• Current Draw:
  • Resting: 5A
  • Maximum (Music): 356A @ 0.5 Ohm, 339A @ 1 Ohm, 323A @ 2 Ohms
  • Maximum (Sinusoidal): 712A @ 0.5 Ohm, 678A @ 1 Ohm, 646A @ 2 Ohms
• Dimensions: 9.37 x 2.80 x 20.16 inches (238 x 71 x 512 mm)
• Weight: 16.39 lbs (7.45 kg)
