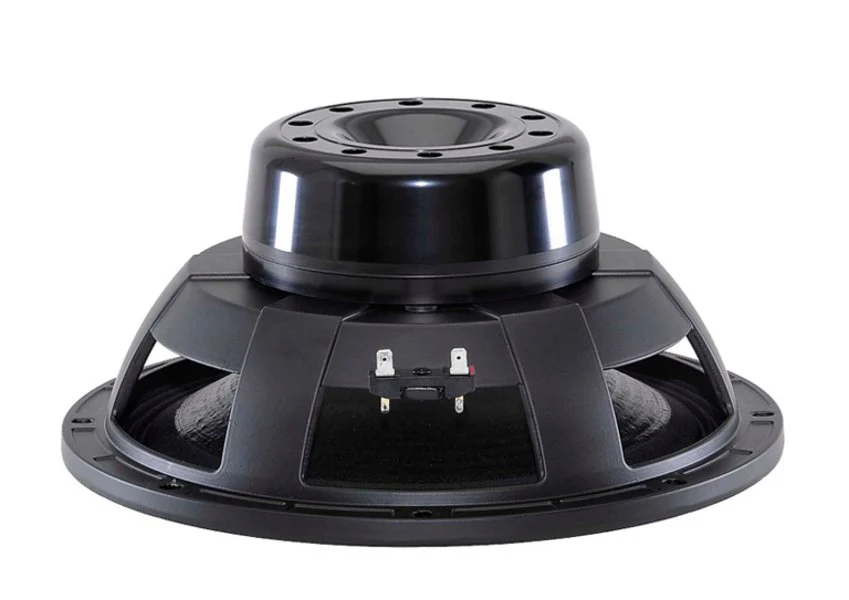

Overview

Features

• 2000 W continuous program power capacity
• 100 mm (4 in) copper voice coil
• 40 - 1500 Hz response
• 96 dB sensitivity
• Aluminum demodulating ring allows a very low distortion figure
• Double silicone spider with optimized compliance
• Ventilated voice coil gap for reduced power compression

Specifications

• Nominal Diameter: 320 mm (12.0 in)
• Nominal Impedance: 4 Ω
• Minimum Impedance: 4.5 Ω
• Nominal Power Handling: 1000 W
• Continuous Power Handling: 2000 W
• Sensitivity: 94.0 dB
• Frequency Range: 40 - 1500 Hz
• Voice Coil Diameter: 100 mm (4.0 in)
• Winding Material: Copper
• Former Material: Glass Fibre
• Winding Depth: 25.0 mm (1.0 in)
• Magnetic Gap Depth: 11.0 mm (0.43 in)
• Flux Density: 1.1 T
• Overall Diameter: 320 mm (12.6 in)
• Bolt Circle Diameter: 300 mm (11.8 in)
• Baffle Cutout Diameter: 280.0 mm (11.0 in)
• Depth: 143 mm (5.63 in)
• Flange and Gasket Thickness: 12 mm (0.47 in)
• Air Volume Occupied by Horn: 4.0 dm³ (0.14 ft³)
• Net Weight: 8.0 kg (17.6 lb)
• Shipping Units: 1
• Shipping Weight: 8.9 kg (19.62 lb)
• Shipping Box: 360x360x200 mm (14.17x14.17x7.87 in)
