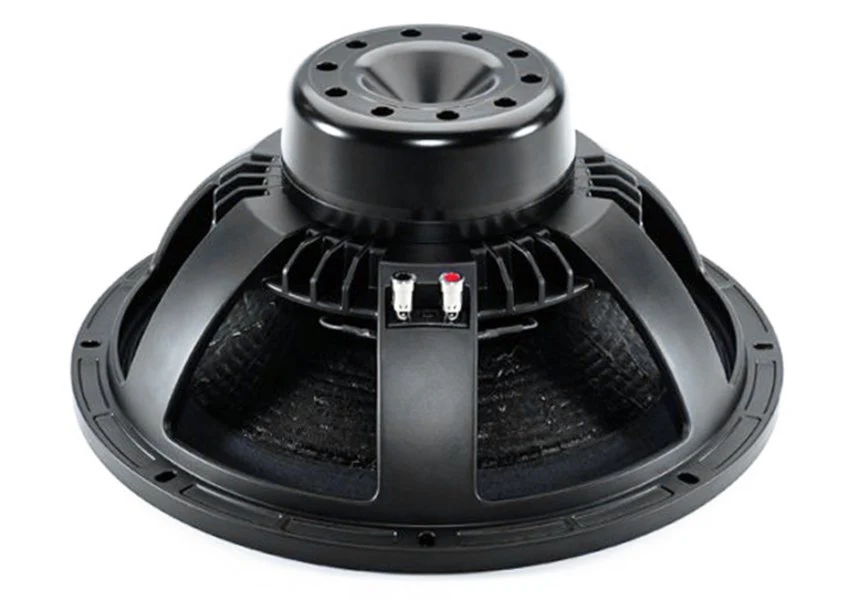

Overview

Features

• 1600 W continuous program power capacity
• 100 mm (4 in) aluminium voice coil
• 45 - 2000 Hz response
• 98 dB sensitivity
• FEA optimized Neodymium magnet assembly
• Double silicone spider with optimized compliance
• Ventilated voice coil gap for reduced power compression
• Aluminum demodulating rings allows a very low distortion figure

Specifications

• Nominal Diameter: 380 mm (15.0 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.6 Ω
• Nominal Power Handling: 800 W
• Continuous Power Handling: 1600 W
• Sensitivity: 98.0 dB
• Frequency Range: 45 - 2000 Hz
• Voice Coil Diameter: 100 mm (4.0 in)
• Winding Material: Aluminium
• Former Material: Glass Fibre
• Winding Depth: 23.0 mm (0.9 in)
• Magnetic Gap Depth: 11.0 mm (0.43 in)
• Flux Density: 1.2 T

Mounting and Shipping Info

• Overall Diameter: 393 mm (15.5 in)
• Bolt Circle Diameter: 374 mm (14.7 in)
• Baffle Cutout Diameter: 354.0 mm (13.9 in)
• Depth: 180 mm (7.09 in)
• Flange and Gasket Thickness: 16 mm (0.62 in)
• Air Volume Occupied by Horn: 6.0 dm3 (0.21 ft3)
• Net Weight: 9.3 kg (20.5 lb)
• Shipping Weight: 10.6 kg (23.37 lb)
• Shipping Box: 425x425x224 mm (16.73x16.73x8.82 in)
