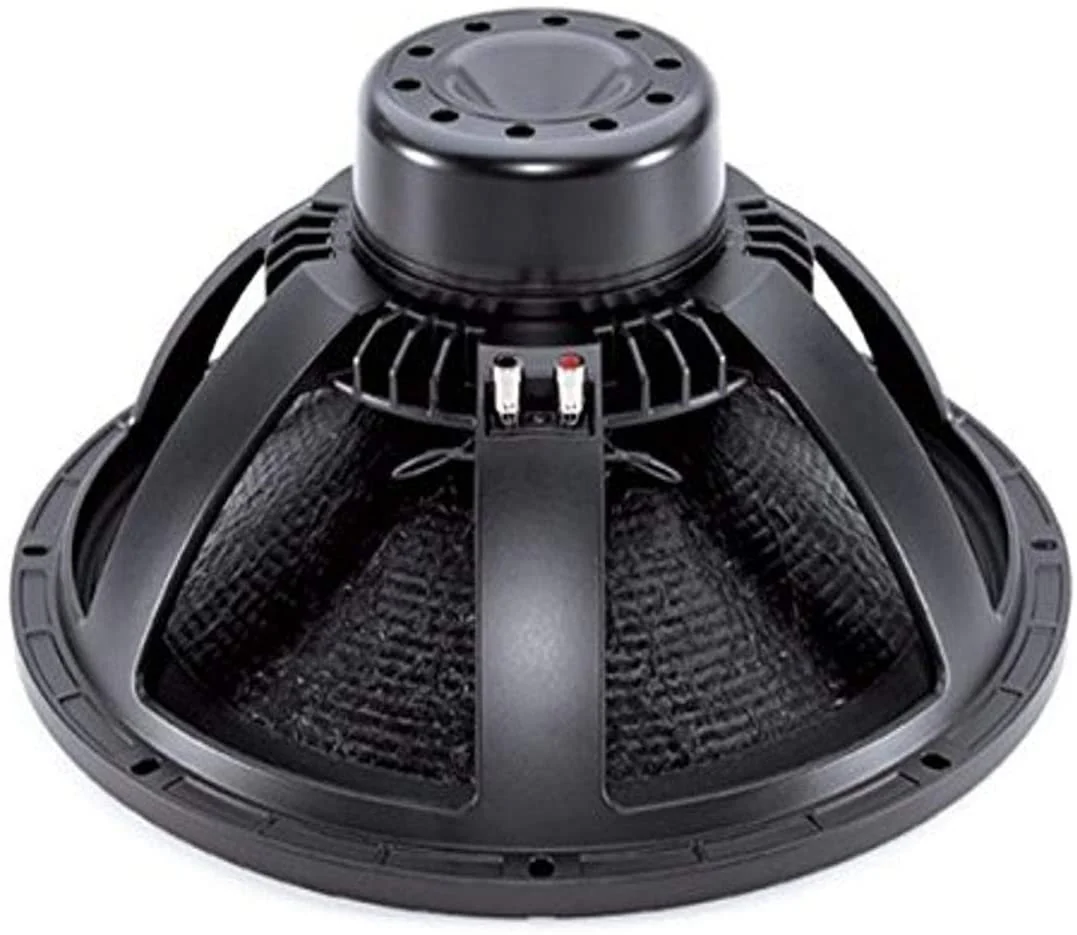

B&C 8 Ohm 1000 Watt 18" Neodymium Woofer - 18NW100-8
Overview
Features
- 2400 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 35 - 1000 Hz response
- 98 dB sensitivity
- FEA optimized Neodymium magnet assembly
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Specifications
- Nominal Diameter: 460 mm (18.0 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.3 Ω
- Nominal Power Handling: 1200 W
- Continuous Power Handling: 2400 W
- Sensitivity: 98.0 dB
- Frequency Range: 35 - 1000 Hz
- Voice Coil Diameter: 100 mm (4.0 in)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 25.0 mm (1.0 in)
- Magnetic Gap Depth: 12.0 mm (0.5 in)
- Flux Density: 1.2 T
Mounting and Shipping Info
- Overall Diameter: 460 mm (18.0 in)
- Bolt Circle Diameter: 440 mm (17.3 in)
- Baffle Cutout Diameter: 422.0 mm (16.6 in)
- Depth: 209 mm (8.2 in)
- Flange and Gasket Thickness: 16 mm (0.62 in)
- Air Volume Occupied by Horn: 8.5 dm3 (0.3 ft3)
- Net Weight: 9.3 kg (20.5 lb)
- Shipping Weight: 10.9 kg (24.03 lb)
- Shipping Box: 500x495x275 mm (19.69x19.49x10.83 in)
Overview
Features
- 2400 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 35 - 1000 Hz response
- 98 dB sensitivity
- FEA optimized Neodymium magnet assembly
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Specifications
- Nominal Diameter: 460 mm (18.0 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.3 Ω
- Nominal Power Handling: 1200 W
- Continuous Power Handling: 2400 W
- Sensitivity: 98.0 dB
- Frequency Range: 35 - 1000 Hz
- Voice Coil Diameter: 100 mm (4.0 in)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 25.0 mm (1.0 in)
- Magnetic Gap Depth: 12.0 mm (0.5 in)
- Flux Density: 1.2 T
Mounting and Shipping Info
- Overall Diameter: 460 mm (18.0 in)
- Bolt Circle Diameter: 440 mm (17.3 in)
- Baffle Cutout Diameter: 422.0 mm (16.6 in)
- Depth: 209 mm (8.2 in)
- Flange and Gasket Thickness: 16 mm (0.62 in)
- Air Volume Occupied by Horn: 8.5 dm3 (0.3 ft3)
- Net Weight: 9.3 kg (20.5 lb)
- Shipping Weight: 10.9 kg (24.03 lb)
- Shipping Box: 500x495x275 mm (19.69x19.49x10.83 in)
$165.56
Original: $473.04
-65%B&C 8 Ohm 1000 Watt 18" Neodymium Woofer - 18NW100-8—
$473.04
$165.56Description
Overview
Features
- 2400 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 35 - 1000 Hz response
- 98 dB sensitivity
- FEA optimized Neodymium magnet assembly
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Specifications
- Nominal Diameter: 460 mm (18.0 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.3 Ω
- Nominal Power Handling: 1200 W
- Continuous Power Handling: 2400 W
- Sensitivity: 98.0 dB
- Frequency Range: 35 - 1000 Hz
- Voice Coil Diameter: 100 mm (4.0 in)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 25.0 mm (1.0 in)
- Magnetic Gap Depth: 12.0 mm (0.5 in)
- Flux Density: 1.2 T
Mounting and Shipping Info
- Overall Diameter: 460 mm (18.0 in)
- Bolt Circle Diameter: 440 mm (17.3 in)
- Baffle Cutout Diameter: 422.0 mm (16.6 in)
- Depth: 209 mm (8.2 in)
- Flange and Gasket Thickness: 16 mm (0.62 in)
- Air Volume Occupied by Horn: 8.5 dm3 (0.3 ft3)
- Net Weight: 9.3 kg (20.5 lb)
- Shipping Weight: 10.9 kg (24.03 lb)
- Shipping Box: 500x495x275 mm (19.69x19.49x10.83 in)
