Overview

Installation and Sound to Suit Any Car

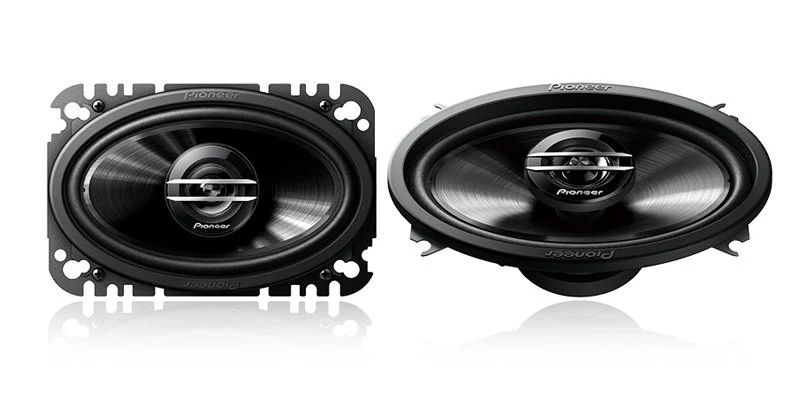

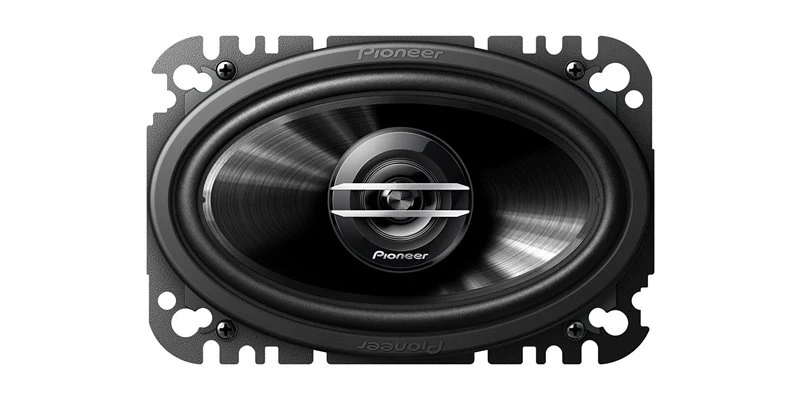

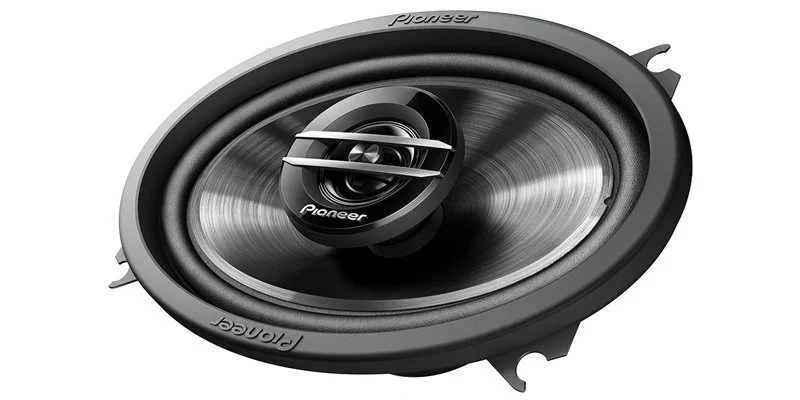

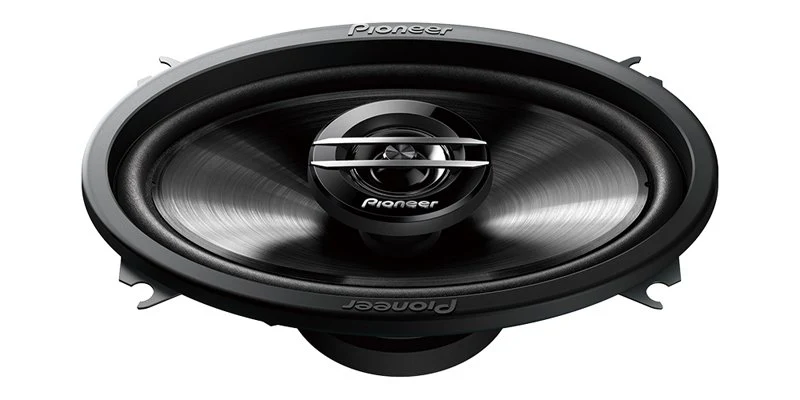

Our TS-G4620S speakers are excellent choices to replace a bad set of factory 4" x 6" speakers. Their two-way design handles 200 watts max. power (30 watts nominal) and feature Pioneer’s extremely strong and lightweight Injected Molded Polypropylene™ (IMPP) with MICA composite cone woofer, for improved sensitivity and reduced distortion.

You don't get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the 1-3/16" Balanced dome tweeter reproduces highs with great performance and musicality.

The TS-G4620S speakers are designed with a shallow mounting depth for easy installation and comes with a custom-fit US- or European-compatible basket, ensuring compatibility with a wide variety of vehicles.sive input, its hard part controls excessive vibration and prevents movement error.

Specifications

• Size: 4" x 6"
• Design: Coaxial 2-Way
• Tweeter Design: 1-3/16" Balanced Dome
• Tweeter Composition: Polyethylene Terephthalate (PET)
• Woofer Composition: Injected Molded Polypropylene™ (IMPP) with MICA
• Woofer Surround: Rubber Coated Cloth
• Woofer Magnet Composition: Ferrite
• Warranty: 1 Year

INSTALLATION SPECIFICATION

• Max. Music Power (Nominal): 200W (30W)
• Frequency Response: 35 Hz - 22 KHz
• Sensitivity (1W/1 m): 89 dB
• Impedance: 4 Ohms
• Mounting Depth: 1-5/8" (in.)
• Cut-Out Dimensions: 3-3/4" x 6" (in.)
