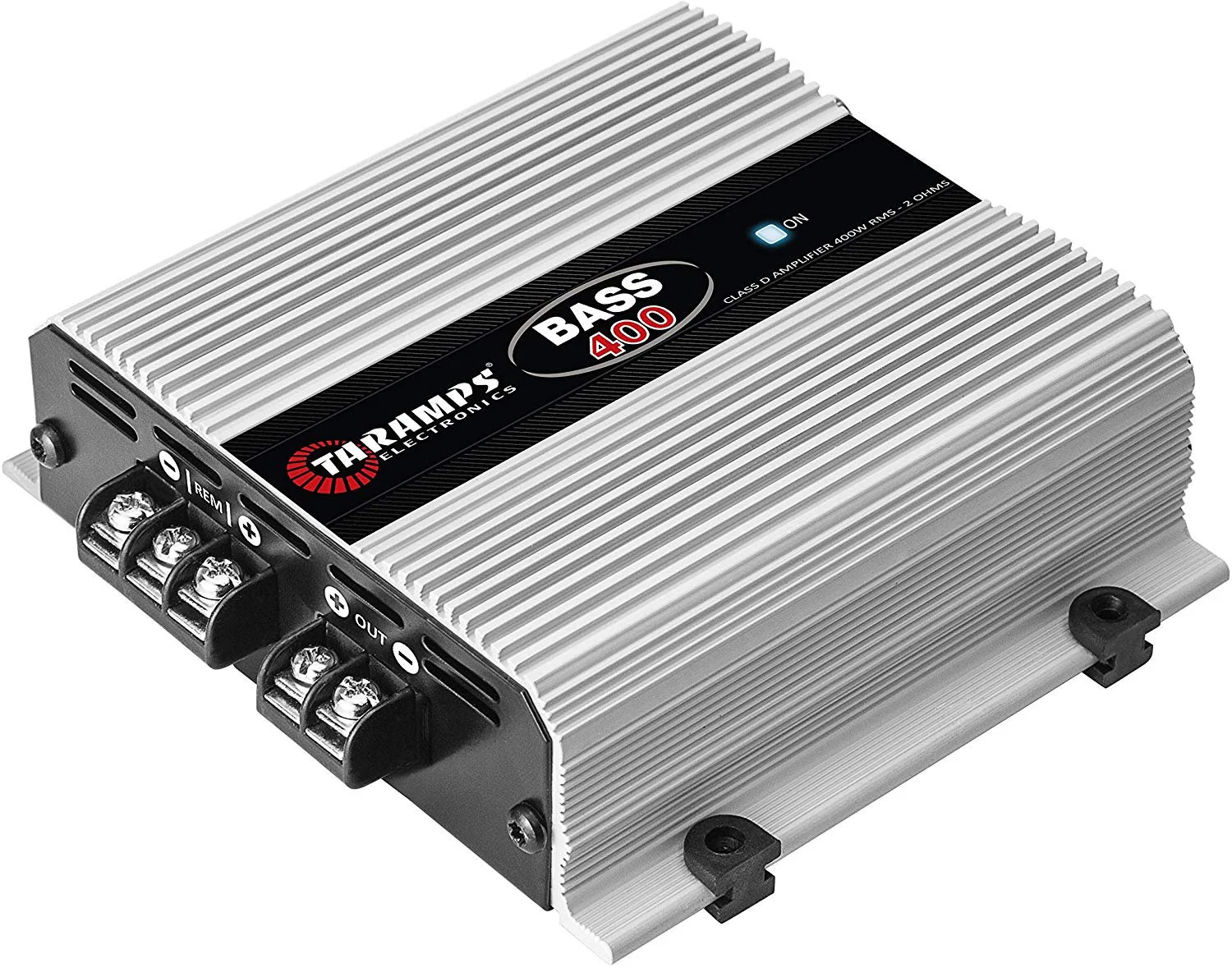

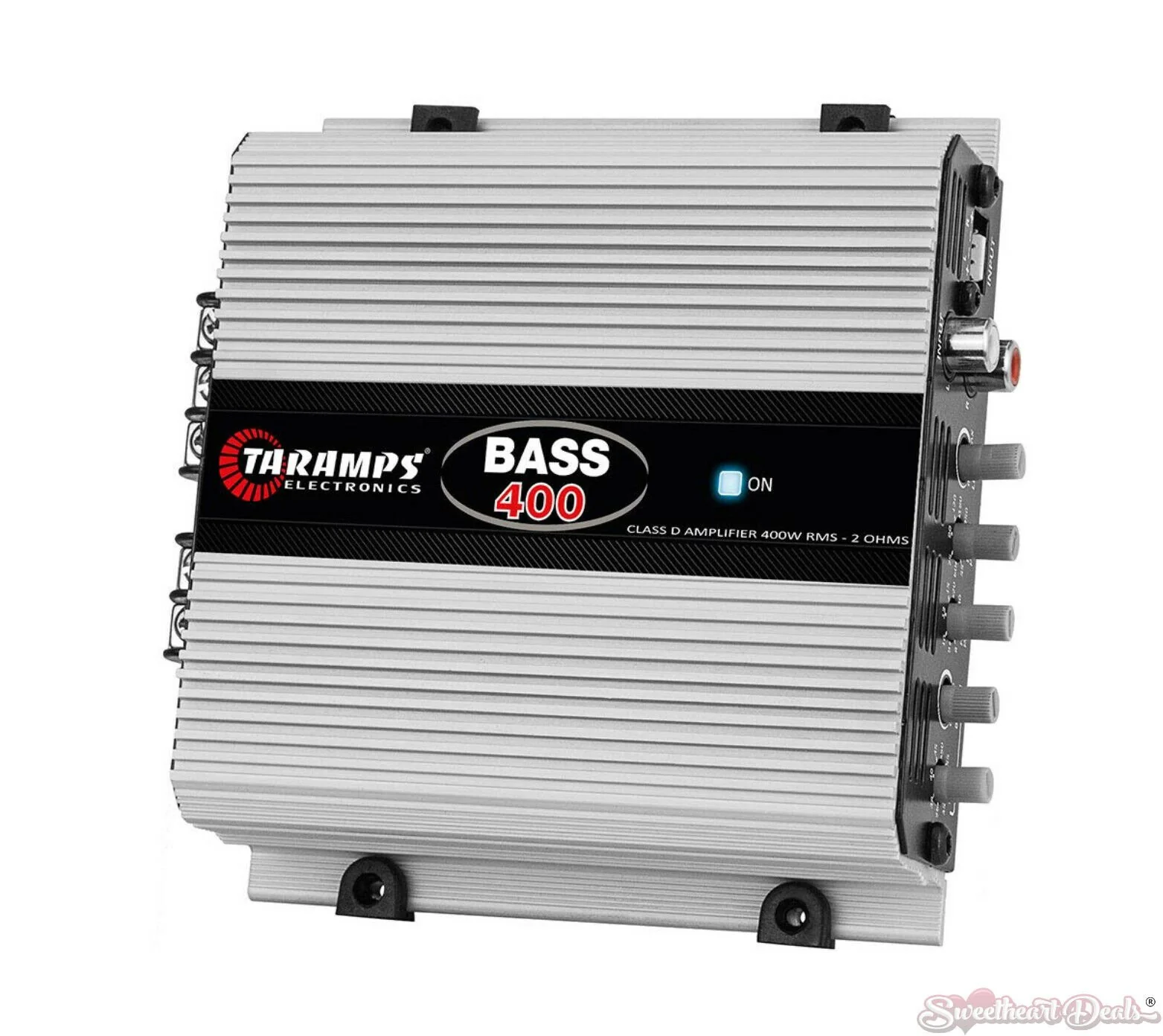

Taramps BASS400 400 Watts RMS Single Channel Audio Car Bass Class D Amplifier
Taramps BASS400 400 Watts RMS Single Channel Audio Car Bass Class D Amplifier
Overview
The BASS 400 amplifier module is carefully designed with the highest technology, and high performance for automotive sound systems focused on subwoofer and bass response. Its maximum power is 400W using 1 channel of 2 OHMS, and frequency responses from 8Hz to 255Hz, with customized adjustments according to the size of the trunk, and the frequency of each vehicle. Through the BASS BOOST and the option of choosing the center frequency, this product can offer much more, excessive displacement control, through SUBSONIC FILTER, volume control and LOW PASS, to hear your bass in the right measure.
|
OPERATION CLASS |
Class D |
|
NUMBER OF CHANNELS |
1 |
|
MAXIMUM POWER |
@ 13.8 VDC - 2 OHMS: 400 W RMS @ 13.8 VDC - 4 OHMS: 214 W RMS |
|
INPUT SENSITIVITY |
RCA: 320mV - FIO: 6V - LEVEL 100% |
|
SIGNAL TO NOISE RATIO |
> 90dB |
|
FREQUENCY RESPONSE |
8Hz to 255Hz (-3dB) |
|
CROSSOVER HIGH PASS (HPF) |
Variable, 8 to 30Hz (-12dB/8ÂȘ) |
|
CROSSOVER LOW PASS (LPF) |
Variable, 55 to 250Hz (-12dB/8ÂȘ) |
|
BASS BOOST |
Parametric, 35 to 55Hz, 0 to +12dB |
|
EFFICIENCY |
82% |
|
INPUT IMPEDANCE |
10K OHMS (RCA) / 1K OHMS (WIRE) |
|
OUTPUT IMPEDANCE |
2 OHMS |
|
PROTECTION SYSTEM |
Thermal and Output Short |
|
MIN. SUPPLY VOLTAGE |
8 VDC |
|
MAXIMUM POWER SUPPLY VOLTAGE |
16VDC |
|
CONSUMPTION AT REST |
0.5 Amp |
|
MAXIMUM MUSIC CONSUMPTION |
17.5 Amp |
|
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL |
35 Amp |
|
DIMENSIONS (H X W X D) MM |
5.28 x 1.65 x 5.4 |
|
WEIGHT |
1.25 lbs |
