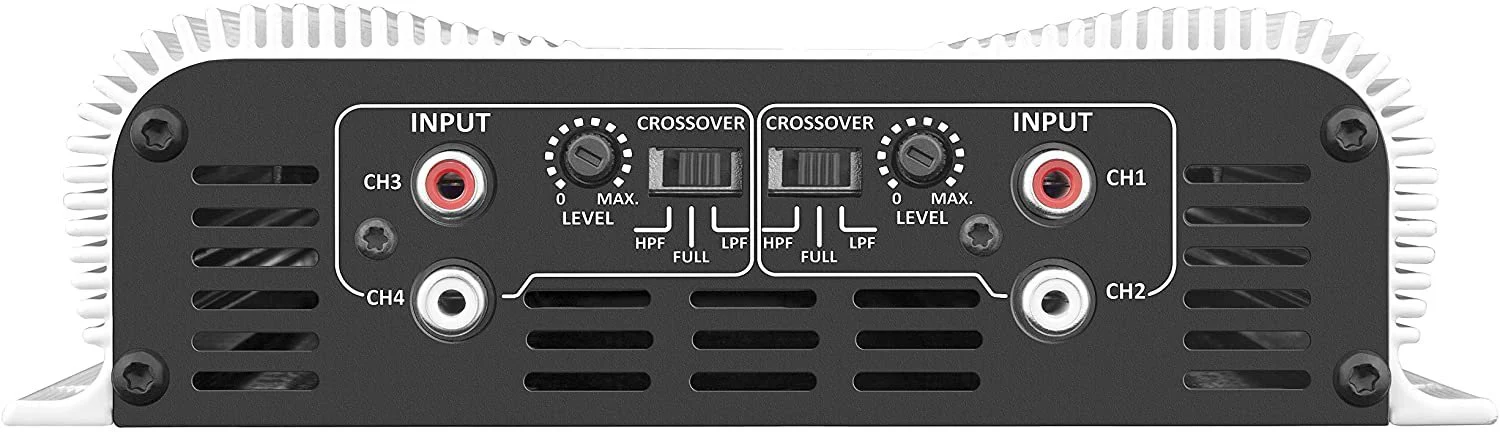

Taramp's DS 2 Ohms 4 Channels 1200 Watts Car Amplifier - DS1200X4
OverviewÂ
The DS 1200Ă—4 is a synonym for Taramps multichannel amplifier module. It has 4 channels of 300 Watts RMS, with maximum power of 1200 Watts RMS, impedance of 2 ohm and is compatible with any frequency, that is, it is FULL RANGE. Versatility, efficiency and quality in a single Taramps product.
Specs:
|
OPERATION CLASS |
D |
|
NUMBER OF CHANNELS |
4 |
|
MAXIMUM POWER |
@ 12.6 VDC - 2 OHMS: 1200W RMS (4 x 300W RMS) @ 12.6 VDC - 4 OHMS: 768W RMS (4 x 192W RMS) |
|
INPUT SENSITIVITY |
250mV |
|
SIGNAL TO NOISE RATIO |
>88dB |
|
FREQUENCY RESPONSE |
9Hz to 27KHz (-3dB) |
|
CROSSOVER HIGH PASS (HPF) |
90Hz (-12dB/8th) Fixed |
|
CROSSOVER LOW PASS (LPF) |
90Hz (-12dB/8th) Fixed |
|
INPUT IMPEDANCE |
18K Ohms |
|
OUTPUT IMPEDANCE |
2 Ohms |
|
PROTECTION SYSTEM |
Output overload |
|
MIN. SUPPLY VOLTAGE |
9VDC |
|
MAXIMUM POWER SUPPLY VOLTAGE |
16VDC |
|
CONSUMPTION AT REST |
1.8A |
|
MAXIMUM MUSIC CONSUMPTION |
@12.6VDC 67.5A |
|
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL |
135A |
|
DIMENSIONS (H X W X D) |
7.17" x 2.05" x 11.06" |
|
WEIGHT |
4.62lb |
